Land Rover Defender: Differential
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT

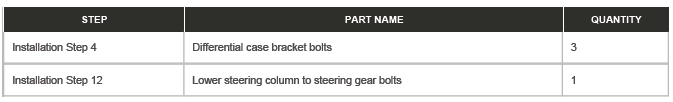

PART(S)
REMOVAL
CAUTION:
Before disconnecting any components, make sure the area is clean and free from
foreign material. When
disconnected all openings must be sealed.
NOTE:
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Drain the differential.
3. Remove the front driveshaft.
4. Remove the front left halfshaft.
5. Remove the right halfshaft.
6. Remove the halfshaft support bracket.

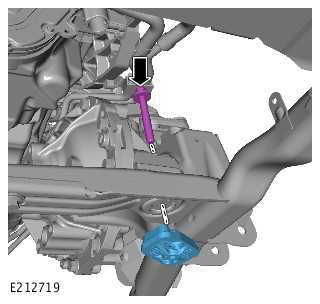

7.

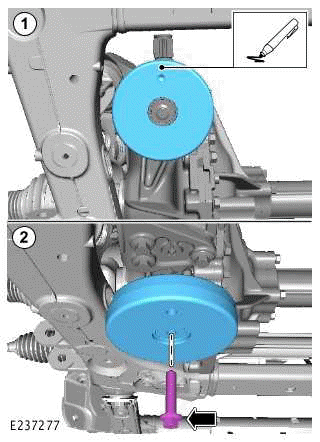

- Mark the installed position of the Noise, Vibration and Harshness (NVH)
damper.
- Remove the bolt.
- Remove the NVH damper.

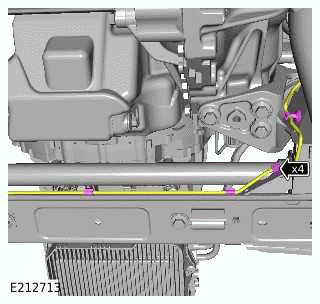

8.
Release the vacuum pipe from the 4 clips.

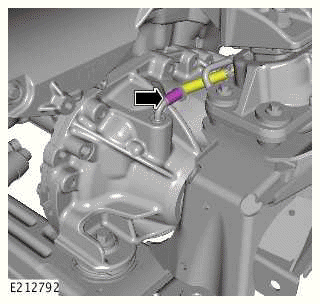

9.
Disconnect the breather pipe.
10.
NOTE:
Left hand drive vehicles.

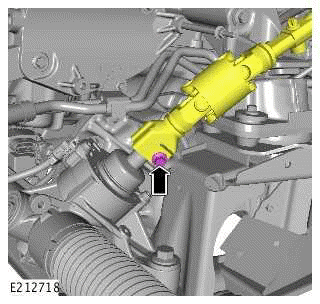

- Align the steering wheel to the straight ahead position.
- Remove and discard the steering column lower shaft bolt.
- Reposition the steering column lower shaft away from the steering gear.
11. Use a suitable jack to support the differential.
General Equipment: Transmission jack

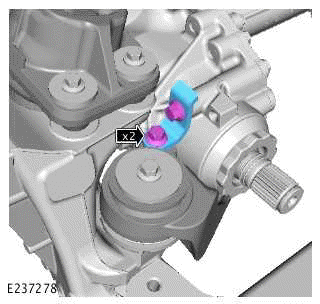

12.
- Remove the 2 bolts.
- Remove the differential upper support bracket.

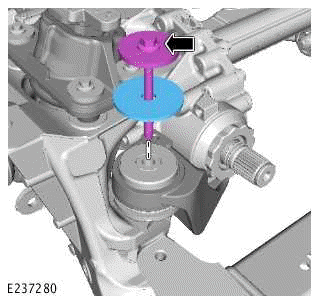

13.
- Remove the upper differential support bracket bolt.
- Remove the washer.

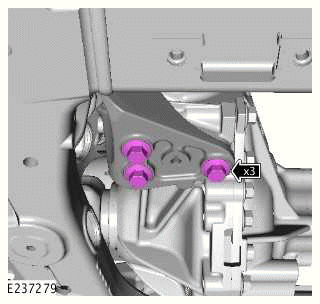

14.
Remove and discard the 3 lower differential support bracket bolts.
15.

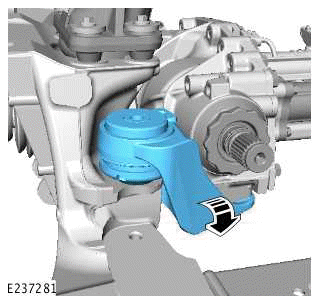

Remove the differential support bracket.
16.
NOTE:
Note the orientation of the component prior to removal.
Remove the differential front bolt and NVH damper.

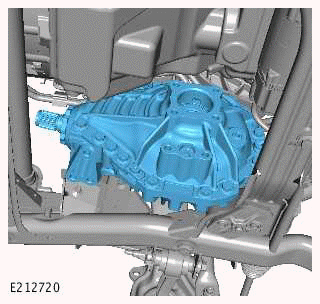

17.
WARNING:
This step requires the aid of another technician.
Remove the front differential.
INSTALLATION
1.
WARNING:
This step requires the aid of another technician.
Install the front differential.
2.
CAUTION:
Make sure the mount is installed in the correct orientation.
- Install the differential front Noise, Vibration and Harness (NVH)
damper.
- Install, but do not fully tighten the differential front bolt.
3. Install the differential support bracket.
4.
Install, but do not fully tighten the 3 new lower differential support
bracket bolts.
Renew Part: Differential case bracket bolts Quantity: 3.
5.
- Install the washer.
- Install, but do not fully tighten the upper differential support bracket
bolt.
6.
- Install the differential upper support bracket.
- Install, but do not fully tight the 2 differential upper support bracket
bolts.
7. Fully tighten the 3 lower differential support bracket bolts.
Torque: 90Nm
8. Fully tighten the 2 differential upper support bracket bolts.
Torque: 25Nm
9. Fully tighten the upper differential support bracket bolt.
Torque: 60Nm
10. Fully tighten the differential front bolt.
Torque: 110Nm
11. Remove the transmission jack.
General Equipment: Transmission jack
12.
NOTE:
Left hand drive vehicles.
13. Connect the breather.
14. Install the vacuum pipe to the 3 clips.
15.
- Install the NVH damper in the correct location.
- Install and tighten the bolt.
Torque: 60Nm
16. Install the halfshaft support bracket.
17. Install the right halfshaft.
18. Install the front left halfshaft.
19. Install the front driveshaft.
20. Fill the differential.
