Land Rover Defender: Engine Front Cover - Ingenium I4 2.0l Petrol
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
.png)
303-1433
Lower Timing Cover Alignment tool
.png)
JLR-303-1628
Remover/Installer, Front Crankshaft Seal
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Disconnect the startup battery ground cable.
3. Vacuum drain the engine oil.
4. Remove the crankshaft pulley.

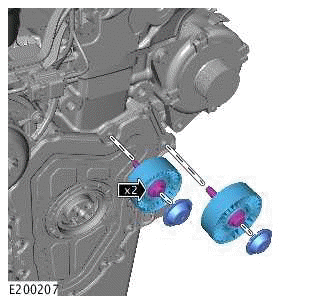

5.
NOTE:
Note the installed position of the components prior to removal.
.png)
- Remove the 2 covers.
- Remove the 2 bolts.
- Remove the 2 idler pulleys.

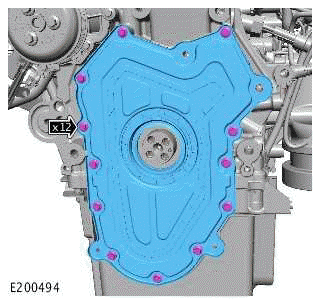

6.
.png)
- Remove the 12 bolts.
- Remove the engine front cover.

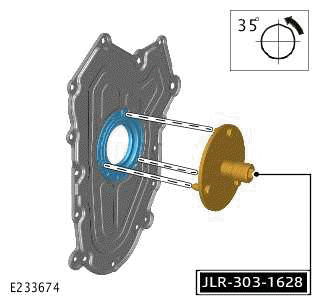

7.
NOTE:
This step is not required if a new engine front cover is installed.
.png)
INSTALLATION

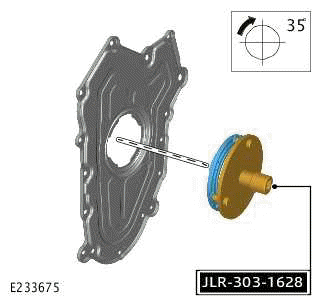

1.
NOTES:
- This step is not required if a new engine front cover is installed.
- Do not lubricate the crankshaft front seal.
.png)

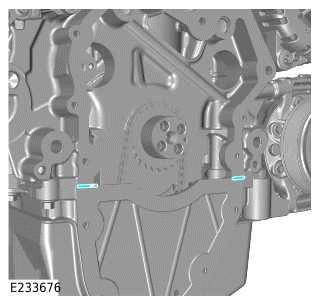

2.
.png)
Apply RTV sealant in the positions shown.

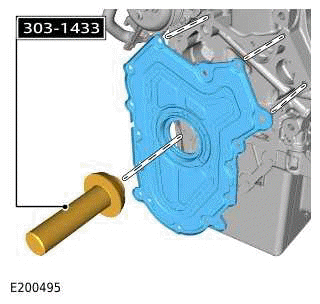

3.
.png)

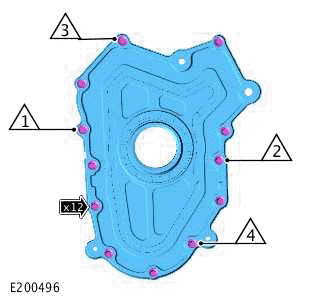

4.
.png)
- Install and tighten the 4 bolts in the illustrated sequence.
Torque: 12Nm
- Working diagonally, install and tighten the remaining 8 bolts.
Torque: 12Nm
5. Remove the special tool.
6.
CAUTION:
Make sure the component is installed to its noted removal position. Failure to
follow this instruction
may result in damage to the vehicle.
- Install the left idler pulley.
- Install and tighten the bolt.
Torque: 48Nm
- Install the cover.
7.
CAUTION:
Make sure the component is installed to its noted removal position. Failure to
follow this instruction
may result in damage to the vehicle.
- Install the right side idler pulley.
- Install and tighten the bolt.
Torque: 25Nm
- Install the cover.
8. Install the crankshaft pulley.
9. Fill the engine with oil.
10. Connect the startup battery ground cable.
