Land Rover Defender: Hybrid Battery Assessment
DESCRIPTION AND OPERATION
SAFE TRANSPORTATION ASSESSMENT FORM FOR HYBRID BATTERIES
WARNING: Do not do any work on the high voltage electric system until the high voltage system on the vehicle is powered down.
WARNINGS:
- This procedure must be carried out in the exact sequence shown. Failure to do so could result in serious personal injury.
- This procedure must only be carried out by an Electric Vehicle Senior Authorised Person (EVSAP).
- Make sure that you also comply with any local legislation regarding working with high voltages, whilst carrying out this procedure.
- Use only approved personal protection equipment, to include: safety glasses or visor, black rubber gloves of the required standards and nonflammable, non-melting clothing, must be worn when instructed to do so.
SAFE TRANSPORTATION ANALYSIS SHEET FOR HYBRID BATTERIES
This form must be filled out in order to assess whether a Jaguar Land Rover hybrid battery is safe for transportation. The results of the test are to be documented in this assessment form. A copy of the assessment form is to remain with the hybrid battery. For transportation purposes all high voltage batteries must include not only this form, but also the documents specified for hazardous materials. The requirements pertaining to the specified documents are different for each country and the transportation method involved.
Jaguar Land Rover part number:
Hybrid battery serial number:
Vehicle Identification Number (VIN):
Vehicle registration mark:

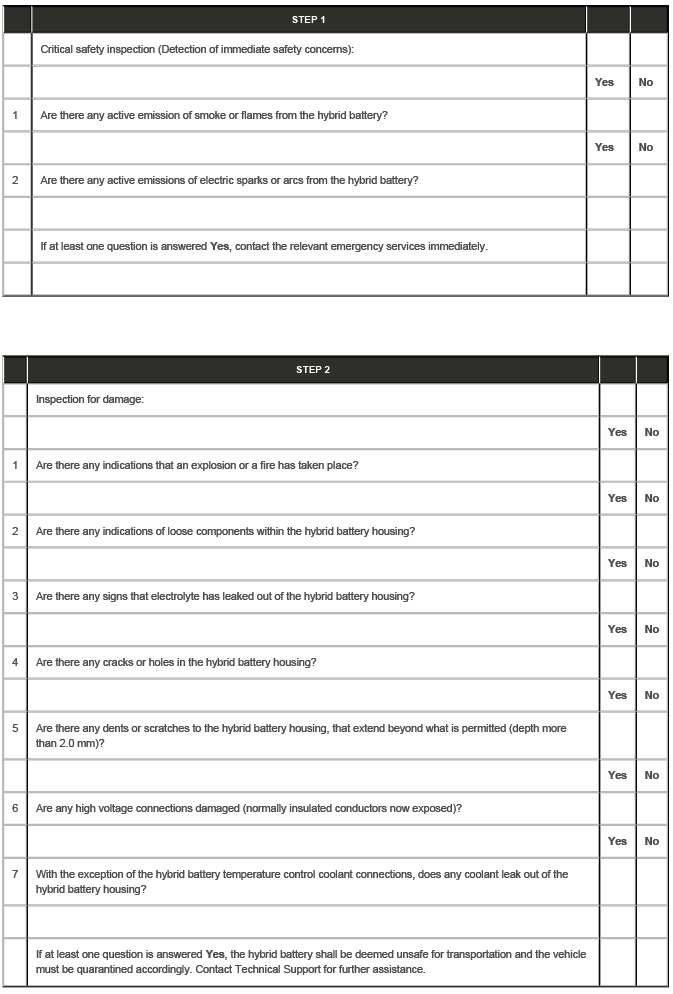

.png)

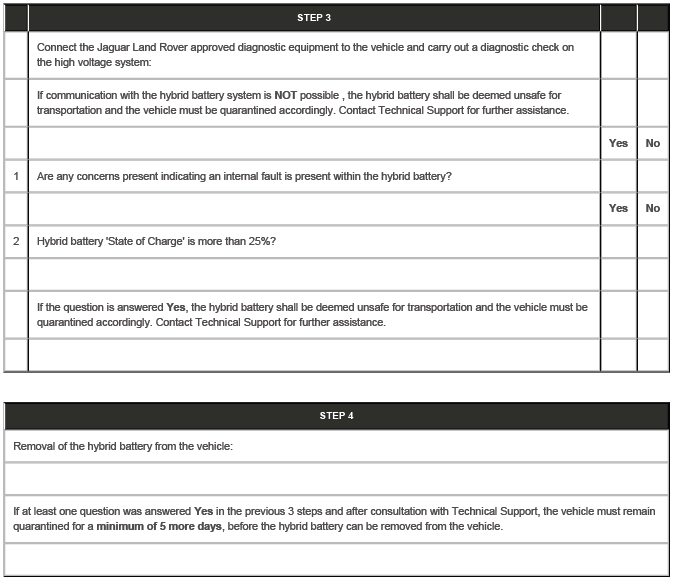

.png)

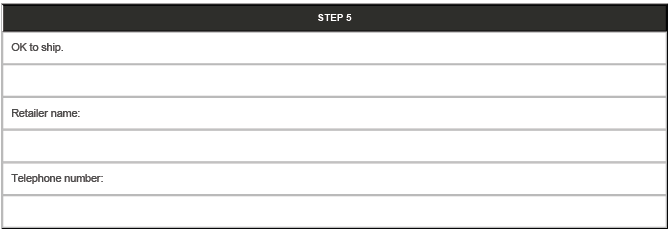

WARNING: This section (step 5) is only to be completed if all the questions in steps 1 to 3 have been answered No.

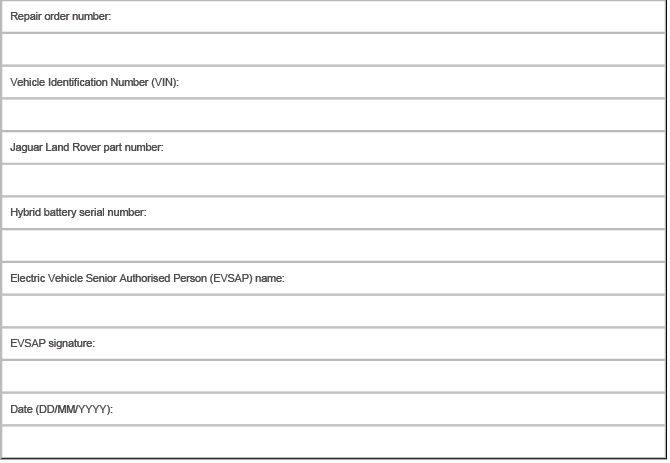

.png)
.png)
