COMPONENT LOCATION

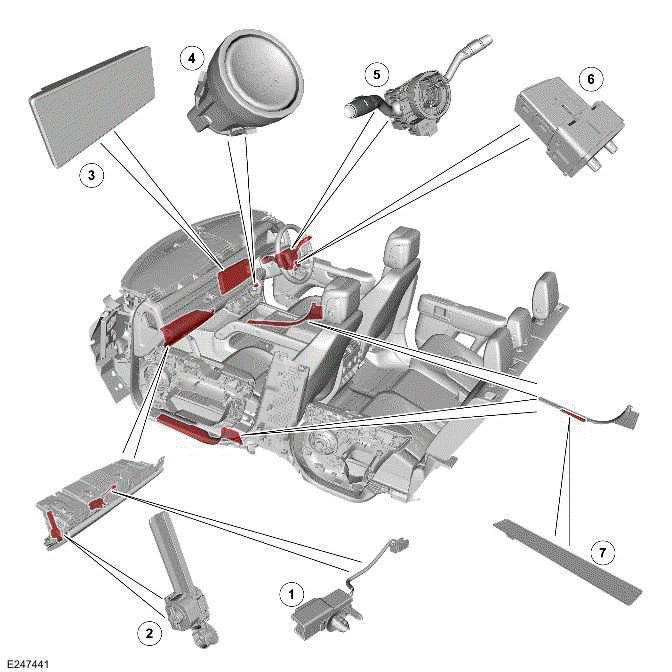

COMPONENT LOCATION - 1 OF 5

NOTES:

Interior Lighting

  1. Glovebox lamp
  2. Glovebox switch assembly
  3. Touch Screen (FCDIM)
  4. Auto stop/start switch
  5. Steering column multifunction switch
  6. Auxiliary lighting switch
  7. Door treadplate illumination Light Emitting Diodes (LEDs) (quantity 2)

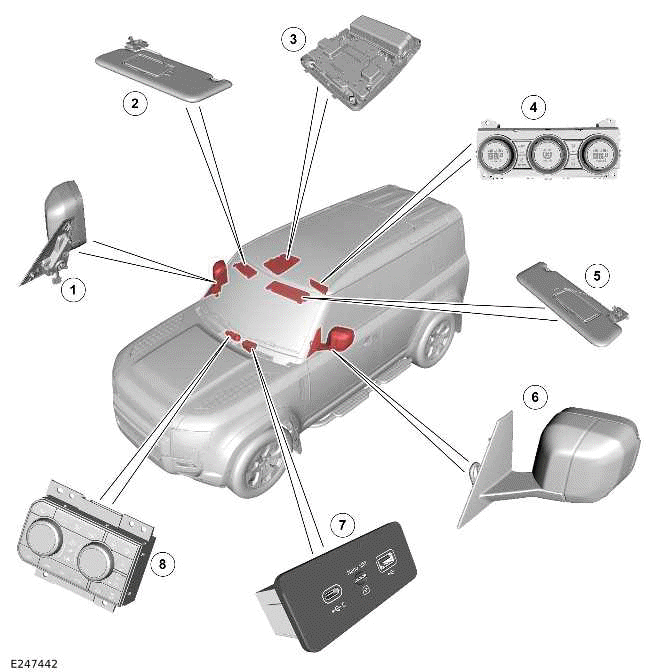

COMPONENT LOCATION - 2 OF 5

NOTES:

Interior Lighting

  1. Approach lamp - Driver door mirror
  2. Right sun visor - Vanity mirror lamp
  3. Front overhead console
  4. Rear Integrated Control Panel (FCIMB) (if equipped)
  5. Left sun visor - Vanity mirror lamp
  6. Approach lamp - Passenger door mirror
  7. Front portable media interface panel
  8. Integrated Control Panel (FCIM)

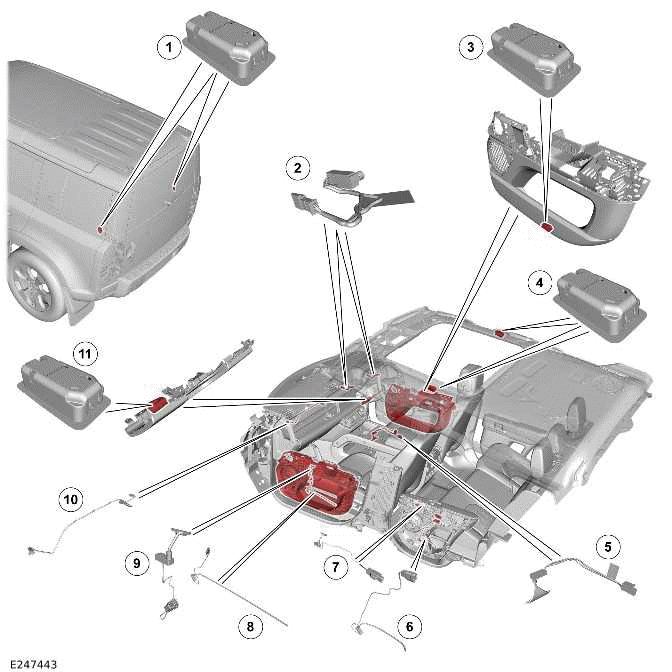

COMPONENT LOCATION - 3 OF 5 - VEHICLE WITH 5 DOORS

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Interior Lighting

  1. Loadspace lamp (quantity 2)
  2. Instrument panel lamp - Short (quantity 2)
  3. Puddle lamp (quantity 4)
  4. Rear interior lamp (quantity 2)
  5. Floor console lamp
  6. Rear door ambient lighting LEDs (quantity 2)
  7. Rear door handle ambient lighting LEDs (quantity 2)
  8. Front door ambience lighting LEDs (quantity 2)
  9. Front door handle ambience lighting LEDs (quantity 2)
  10. Instrument panel lamp - Long
  11. Footwell lamp (quantity 2)

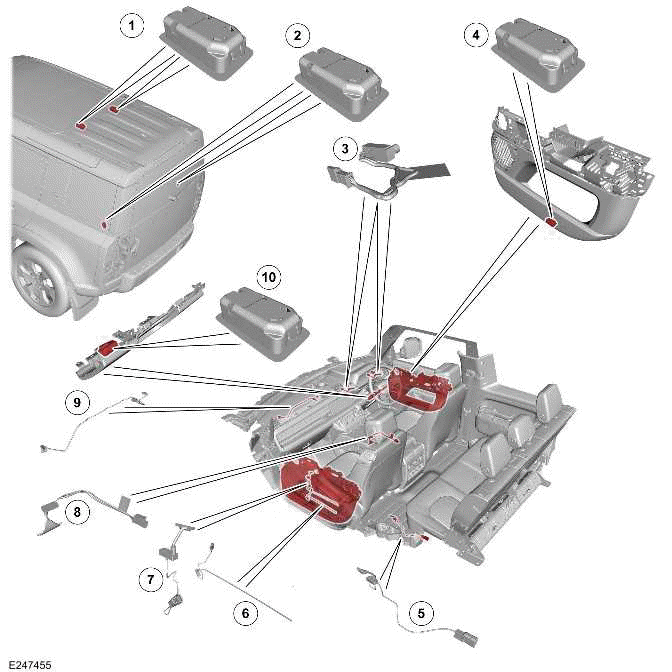

COMPONENT LOCATION - 4 OF 5 - VEHICLE WITH 3 DOORS

NOTE: RHD vehicle is shown, LHD vehicle is similar.

Interior Lighting

  1. Rear interior lamp (quantity 2)
  2. Loadspace lamp (quantity 2)
  3. Instrument panel lamp - Short (quantity 2)
  4. Puddle lamp (quantity 2)
  5. Rear quarter pocket ambient lighting LEDs (quantity 2)
  6. Door ambience lighting LEDs (quantity 2)
  7. Door handle ambience lighting LEDs (quantity 2)
  8. Floor console lamp
  9. Instrument panel lamp - Long
  10. Footwell lamp (quantity 2)

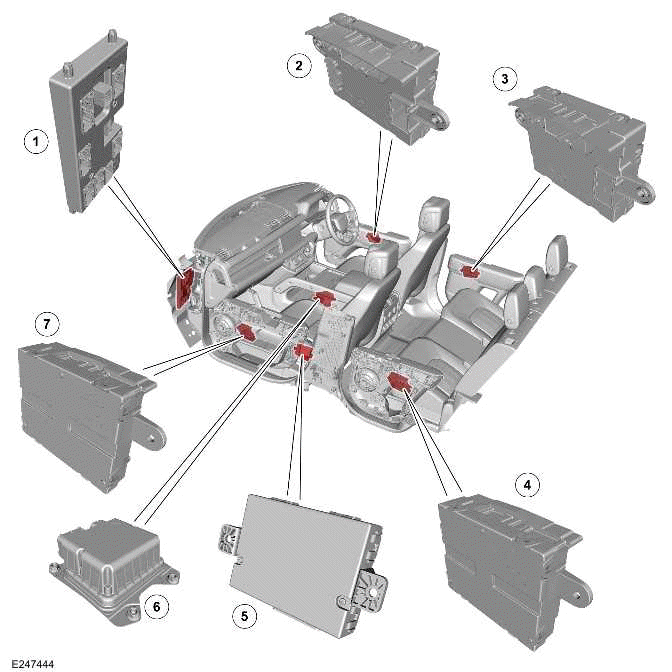

COMPONENT LOCATION - 5 OF 5

NOTES:

Interior Lighting

  1. Body Control Module (BCM)/ Gateway Control Module (GWM)
  2. Driver Door Control Module (DDM)
  3. Driver Rear Door Module (DRDM) - 5 doors vehicle only
  4. Passenger Rear Door Module (PRDM) - 5 doors vehicle only
  5. Remote Function Actuator (RFA)
  6. Restraints Control Module (RCM)
  7. Passenger Door Control Module (PDM)

OVERVIEW

The interior ambient lighting system uses LEDs only. The interior lighting is controlled by the BCM/ GWM. The interior lamps include:

The interior lamps have 2 modes of operation:
