Land Rover Defender: MHEV Front Junction Box

Land Rover Defender 2020-2025 Service Manual / Electrical / Battery and Charging System / Battery, Mounting and Cables - Vehicles With: Non-Electric Vehicles / MHEV Front Junction Box

REMOVAL AND INSTALLATION

REMOVAL

NOTE:

1. Raise and support the vehicle on a suitable 2 post lift.

2. Power down the Mild Hybrid Electric Vehicle (MHEV) system.

3.

MHEV Front Junction Box

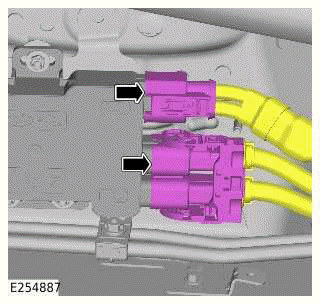

Disconnect the 2 electrical connectors.

4.

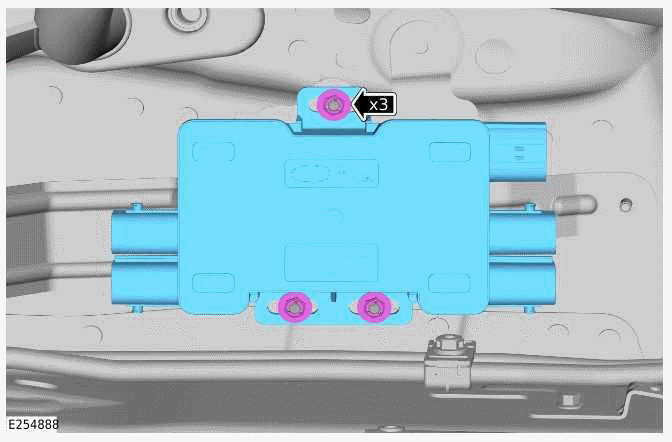

MHEV Front Junction Box

INSTALLATION

1. Connect the 2 electrical connectors to the MHEV battery front junction box.

2.

3. Power up the MHEV system.
