Land Rover Defender: Permit To Work

DESCRIPTION AND OPERATION

The Permit To Work (PTW) shall be completed by a single Electric Vehicle Authorised Person (EVAP) only.

COMPLETE SECTIONS 1,2 AND 3 BEFORE THE HIGH VOLTAGE SYSTEM POWER DOWN

SECTION 1: IDENTIFICATION OF VEHICLE TO BE WORKED ON

Permit To Work

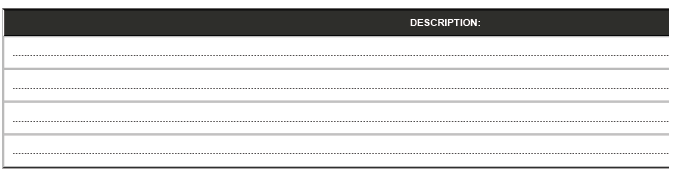

SECTION 2: DESCRIPTION OF WORK TO BE PERFORMED AFTER HV SYSTEM POWER DOWN (completed by EVAP)

Permit To Work

SECTION 3: SAFETY PRECAUTIONS IN PLACE BEFORE THE HV SYSTEM POWER DOWN (completed by EVAP)

Permit To Work

I confirm that the above precautions have been performed and are adequate for the work/testing detailed in Section 2.

EV Authorised Person (EVAP) - Signed:

..............................................................................................................................

Print Name: ................................................... Date: ................................................... Time: ...................................................

Safety Accompanying Person (Responsible for the safety hook during the vehicle power down-signed by an EVCP)

I confirm that I will be on standby to support the activity of High Voltage (HV) system power down. I understand my responsibilities as the Safety Accompanying Person and will perform this role in accordance with requirements detailed in the Jaguar Land Rover EV Safety Rules.

EV Competent Person (EVCP) - Signed:

....................................................................................................................................

Print Name: ................................................... Date: ................................................... Time: ...................................................

COMPLETE SECTIONS 4,5 AND 6 AFTER THE HIGH VOLTAGE SYSTEM POWER DOWN

SECTION 4: SAFETY PRECAUTIONS IN PLACE BEFORE FURTHER WORK/TESTING ON THE VEHICLE (completed by EVAP)

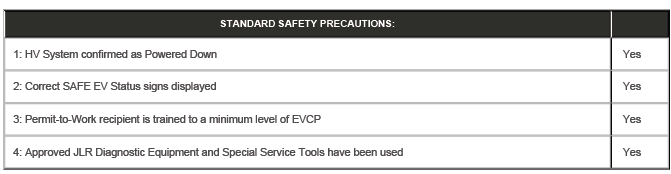

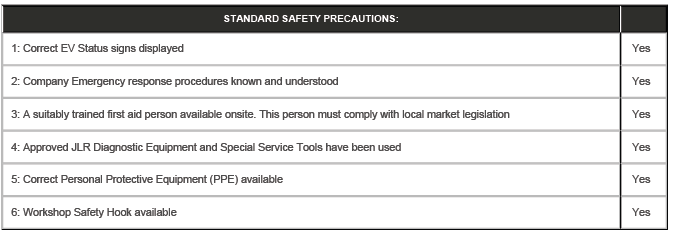

Standard Safety Precautions

Permit To Work

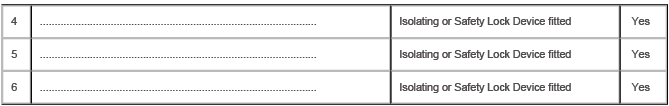

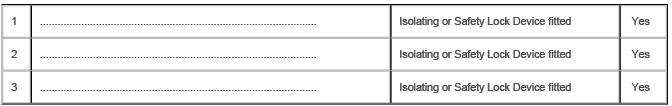

Safety Precautions taken in accordance with the EV Safety Rules

State exactly the safety measures which have been implemented during the HV system power down procedure to remove or control hazards to enable the work/testing to proceed.

Permit To Work

Permit To Work

SECTION 5: ISSUE (signed by EVAP)

I confirm that the points of isolation and safety precautions listed in Section 4 are in place and will remain in place until this Permit-To-Work (PTW) is cancelled; the HV system has been Powered Down and the appropriate safety equipment is available.

EV Authorised Person (EVAP) - Signed:

....................................................................................................................................

Print Name: ................................................... Date: ................................................... Time: ...................................................

SECTION 6 : RECEIPT (signed by EVCP)

I understand that the points of isolation and safety precautions listed in Section 4 are in place and will remain in place until this Permit-To-Work (PTW) is cancelled. I understand the work listed in Section 2 and accept my responsibilities under this Permit-to-Work.

EV Competent Person (EVCP) - Signed: ....................................................................................................................................

Print Name: ................................................... Date: ................................................... Time: ...................................................

SECTION 7: WORKING PARTY CONTROL (all members of Working Party to sign)

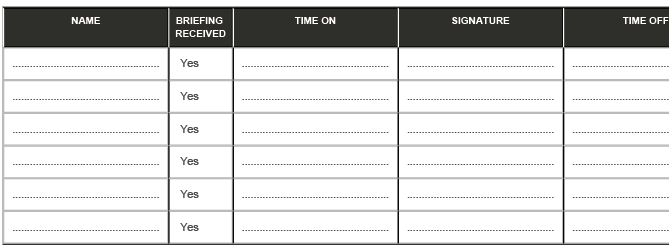

Permit To Work

COMPLETE SECTIONS 8,9 AND 10 AFTER THE WORK IS COMPLETE

SECTION 8: CLEARANCE (signed by PTW Holder)

I confirm that all persons working under this permit have withdrawn from, and warned not to perform any further work on any EV Systems.

The work on the EV System defined in Section 2 is complete.

The work on the EV System defined in Section 2 is NOT complete.

EV Competent Person (EVCP) - Signed: ....................................................................................................................................

Print Name: ................................................... Date: ................................................... Time: ...................................................

SECTION 9: CANCELLATION (signed by EVAP)

I confirm that this Permit-to-Work is cancelled and that the HV System is ready to be powered up.

I confirm that this Permit-to-Work is cancelled and that the HV System is NOT ready to be powered up.

EV Authorised Person (EVAP) - Signed: ....................................................................................................................................

Print Name: ................................................... Date: ................................................... Time: ...................................................

SECTION 10: VEHICLE POWER UP (signed by EVAP)

Safety Accompanying Person (Responsible for the safety hook during the vehicle power up-signed by an EVCP)

I confirm that I will be on standby to support the activity of High Voltage (HV) system power up. I understand my responsibilities as the Safety Accompanying Person and will perform this role in accordance with requirements detailed in the Jaguar Land Rover EV Safety Rules.

EV Competent Person (EVCP) - Signed: ....................................................................................................................................

Print Name: ................................................... Date: ................................................... Time: ...................................................

I confirm that the HV System Power Up procedure was completed successfully and the EV operation is restored.

I confirm that the HV System Power Up procedure was NOT completed successfully and the EV operation is NOT restored.

EV Authorised Person (EVAP) - Signed: ....................................................................................................................................

Print Name: ................................................... Date: ................................................... Time: ...................................................

Comments:

..........................................................................................................................

..........................................................................................................................

..........................................................................................................................

Permit To Work Surrender Form

DESCRIPTION AND OPERATION

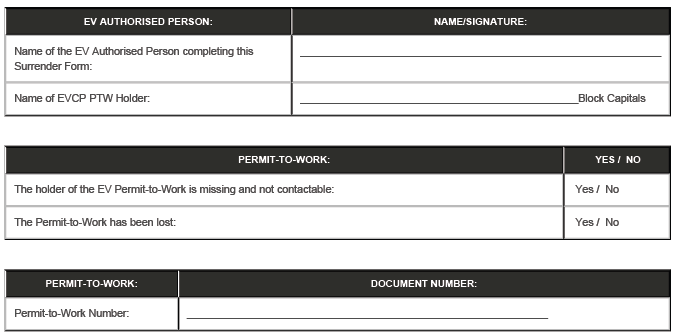

NOTE: Please complete ALL boxes.

Permit To Work Surrender Form

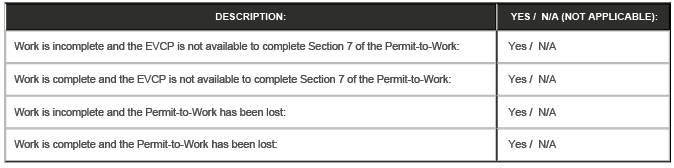

NOTE: Reason for surrendering the PTW using this Surrender Form - please enter YES or N/A (Not Applicable).

Permit To Work Surrender Form

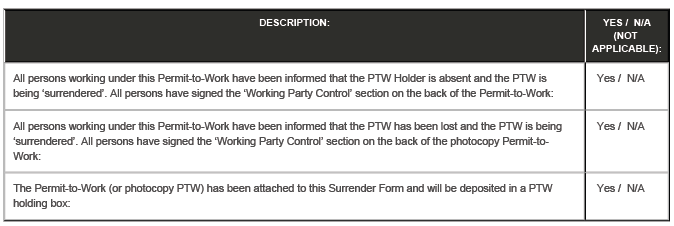

NOTE: Please confirm by entering a 'YES' or 'N/A' (not applicable).

Permit To Work Surrender Form

Signed:____________________ Date:____________________ Time:_____________________
