Land Rover Defender: Quiescent Drain
DESCRIPTION AND OPERATION
VEHICLE QUIESCENT CURRENT TEST
If a customer complains of a startup battery that discharges continuously or
when left for a prolonged period of time, it
is recommended that a quiescent drain test is done as described below.
When the vehicle is armed, the effect of the security system status indicator
flashing is to cause a pulsation in the
measured current drain. In this case, either the average current should be taken
(using a digital multimeter) with an
averaging system) or the current reading taken, ignoring the brief high current
peaks.
Equipment
A digital multimeter with current clamp.
METHOD OF MEASUREMENT
PREPARATION - ONLY ON VEHICLES, INSTALLED WITH SECURE TRACKER FEATURE
NOTES:
- The 'Service Mode' feature is not available on North American
Specification (NAS) market vehicles.
- Before disconnecting power to the Telematic Control Unit Module (TCU)
the vehicle owner must place the
TCU into 'Service Mode'. The 'Service Mode' disables all alert triggers,
except movement alert.
- This must be done for example when disconnecting the startup battery
to do maintenance repairs.
- For security purposes 'Service Mode' is the sole responsibility of
the vehicle owner as it requires a
- Personal Identification Number (PIN) code that has been defined by
the owner.
The TCU 'Service Mode' can be activated in the following ways:
- Through the Call Center - The owner calls the Telematics Service
Provider (TSP) and requests to set the vehicle
into 'Service Mode'.
- Through the 'InControl Remote' mobile phone application - The owner
enables the 'Service Mode'.
- Through the InControl website - The owner enables the 'Service Mode'.
NOTES:
- If the TCU is not set into 'Service Mode', then communication to and
from the TCU may be lost, which may
prevent the vehicle starting.
- Failure to do so may result in any warranty claim being rejected.
If the disconnection procedure is not done, the system sends a theft alert to
the following:
- The owner, through the InControl Remote mobile phone application.
- The Telematics Service Provider (TSP).
Then the system will enter 'Theft Notification' or 'Stolen Vehicle Tracking'
mode during which time the charge in the
TCU battery would be used. The emergency services may be falsely alerted that
the vehicle has been stolen.
When the primary vehicle battery is disconnected for a period of time, the
vehicle owner can define the time it is to be
disconnected for. If the time is exceeded, the vehicle owner must re-activate
the 'Service Mode'. To re-activate the
'Service Mode' the owner is required to use the 'InControl Remote' mobile phone
application.
ALL VEHICLES, USING A DIGITAL MULTIMETER WITH A CURRENT CLAMP
- Switch off all electrical loads and make sure that the vehicle is in
Power Mode 4 (vehicle unlocked and smart
key present).
- Remove any other potential electrical drains such as accessories plugged
into accessory sockets.
- Connect the current clamp to the digital multimeter.
- Calibrate the current clamp.
- Install the current clamp around the startup battery ground cable.
- Follow the instructions in the "Quiescent Current Test" section in this
procedure.
QUIESCENT CURRENT TEST
- Select Power Mode 6 (Ignition ON) and then select Power Mode 4 (vehicle
unlocked and smart key present)
(do not crank).
- Open and latch all doors, hood, tailgate or luggage compartment lid.
- Lock the vehicle using the remote function on the smart key (Single lock
only to avoid volumetric sensor
arming).
- Wait until the vehicle systems have completely shut down.
- The hazard warning lamp switch illumination or the Light Emitting
Diode (LED), installed in the switch is
a possible indicator of the shutdown period. When the Body Control
Module (BCM)/ Gateway Module A
(GWM) shutdown has completed, the illumination of the hazard warning
lamp switch or the LED
extinguishes.
- If none of the above listed indicators are available, wait until the
specified time for shutdown period has
elapsed. Refer to the 'Quiescent Drain - Typical Values' section in this
procedure for details.
- Record the amperage readings.
- Record the final reading on the battery report form.
The preferred method of testing following an excessive current consumption
figure is to use a current clamp around
individual junction box leads to the various suspected circuits to identify a
potential cause.
This is in preference to the old method of removing fuses for the following
reasons:
- The drain may be caused by a module remaining active and preventing the
quiescent drain from reducing to
normal levels.
- The drain may be caused by a relay winding that is activated. Pulling
the fuse can allow this to 'reset' and the drain
will be lost and go un-diagnosed.

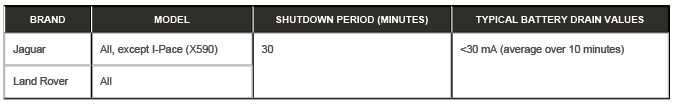

QUIESCENT DRAIN - TYPICAL VALUES
NOTE:
The quiescent drain after the initial shutdown period should not exceed the
value shown in the table.
The total current drain will be higher if certain approved accessories are
installed. For example: tracker, trailer module.
