Land Rover Defender: Steering Column - Description and Operation

Land Rover Defender 2020-2024 Service Manual / Chassis / Steering System / Steering Column / Steering Column - Description and Operation

DESCRIPTION AND OPERATION

COMPONENT LOCATION

Steering Column

  1. Steering column lower shaft
  2. Steering bulkhead seal
  3. Steering column multifunction switch (left/right)
  4. Steering wheel
  5. Steering column
  6. Steering column upper shaft

OVERVIEW

The steering column consists of the upper and lower shafts, the steering column and the steering wheel. These components are connected together to transfer driver steering inputs to the steering gear.

The steering column incorporates either manual or electric tilt and reach adjustment. An adjustment switch (electric) or lever (manual) for tilt and reach adjustment is installed in the lower cowl of the upper column.

Depending on market specification, the steering wheel also incorporates a steering wheel heater, and the steering column incorporates an Electric Steering Column Lock (ESCL).

Steering wheel switchpacks are located each side of the driver airbag and are connected to the Steering Wheel Module (SWM) through the Clockspring.

The steering wheel switchpacks allow for operation of the following vehicle systems:

The steering column multifunction switch (left/right) located on the steering column allows for operation of the following vehicle systems:

The steering wheel also incorporates the driver airbag, with the integrated horn switch.

DESCRIPTION

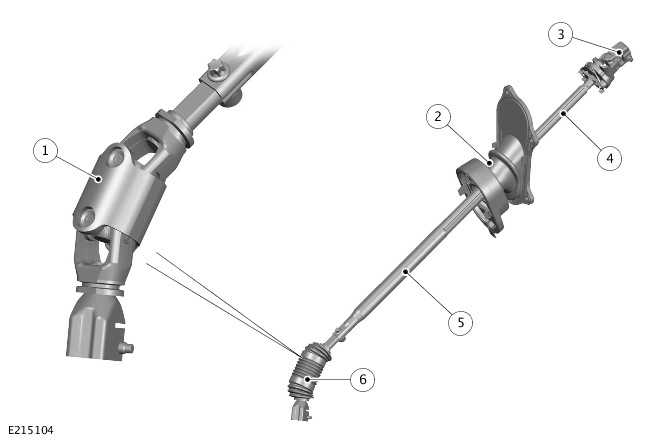

UPPER AND LOWER SHAFTS

Steering Column

  1. Universal joint
  2. Steering bulkhead seal
  3. Universal joint
  4. Inner shaft
  5. Outer shaft
  6. Boot

The upper shaft consists of inner and outer pipes that can move telescopically to:

The universal joint connects the inner pipe to the steering column. An isolator disc, between the universal joint and the inner pipe, reduces Noise, Vibration and Harshness (NVH) in the steering column.

A steering bulkhead seal is installed on a bearing sleeve on the outer shaft. It seals the upper shaft where it passes through the engine and secondary bulkheads. A bearing allows the upper shaft to rotate within the seal assembly.

The lower shaft consists of a double universal joint with a stub shaft and pinion extension. This provides the connection to the upper shaft and the steering gear respectively. The universal joint is equipped with a corrugated boot.

UPPER COLUMN - ELECTRIC ADJUSTMENT

Steering Column

  1. Steering Wheel Module (SWM) and Clockspring assembly
  2. Upper cowl
  3. Steering column adjustment motor - Tilt
  4. Electric Steering Column Lock (ESCL) (if equipped)
  5. Energy management plate
  6. Outer bracket
  7. Steering column adjustment motor - Reach
  8. Swing bracket
  9. Steering column spindle
  10. Steering column jacket
  11. Inner bracket
  12. Steering column adjustment switch
  13. Lower cowl

The steering column spindle is part of the steering column jacket assembly, that is installed in the swing bracket. An electric motor on the swing bracket drives the steering column jacket assembly axially within the swing bracket. This provides the reach adjustment of the steering column.

The swing bracket is attached to the inner bracket with 2 pivot pins at the front and 2 threaded spindles at the rear. A second electric motor on the swing bracket drives the spindles to raise and lower the rear of the swing bracket, relative to the inner bracket. This provides the tilt adjustment of the steering column.

The inner bracket is located on rails in an outer bracket, which is attached to the cross-car beam. The inner and outer brackets are locked together by an energy management plate, which is attached to both brackets with screws. In a serious impact, the inner bracket progressively moves forward on the rails in the outer bracket. This is provided to prevent excessive force causing injury as the driver strikes the airbag. The movement is controlled by sections of the energy management plate that peel back in a controlled manner. This is provided to absorb energy and to allow the steering wheel to move with the driver.

The Steering Wheel Module (SWM) and Clockspring assembly is attached to the top of the steering column jacket by 2 screws. The assembly includes the multifunction switches for the exterior lighting and for the windshield wipers and washers.

Upper and lower cowls cover that part of the steering column not concealed by the instrument panel. The steering column adjustment switch, for control of the tilt and reach adjustment motors, is installed in the right side of the lower cowl. The lower cowl may also contain an Immobilizer Antenna Unit (IAU) for the Passive Entry Passive Start (PEPS) system.

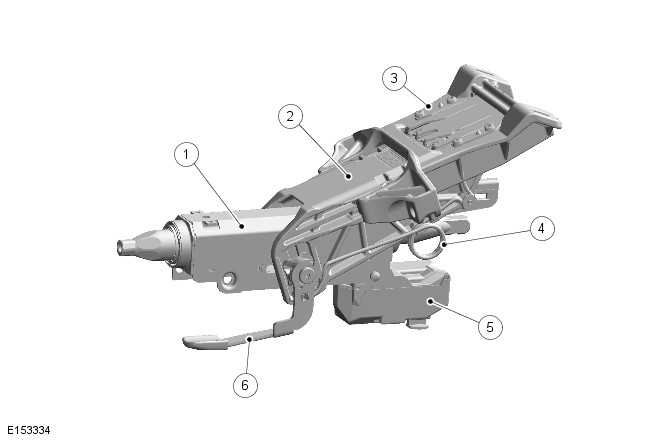

UPPER COLUMN - MANUAL ADJUSTMENT

Steering Column

  1. Column jacket
  2. Inner bracket
  3. Outer bracket
  4. Counterbalance spring (quantity 2)
  5. Electric Steering Column Lock (ESCL) or dummy lock
  6. Steering column manual adjustment lever

The shaft of the upper column is installed in a bearing housing. The housing is attached to an inner bracket with a pivot pin and an adjustment locking mechanism. Slots at the attachment points, in the bearing housing and the inner bracket. This allows the bearing housing to move axially and tilt in the inner bracket and provides the tilt and reach adjustment of the steering wheel. The locking mechanism is a friction lock, operated by a lever, which turns a cam disc.

ELECTRIC STEERING COLUMN LOCK - IF EQUIPPED

The Electric Steering Column Lock (ESCL) is attached to the underside of the steering column lower cowl. The ESCL engages with a locking sleeve on the shaft of the steering column to lock the steering. A tolerance ring is installed between the locking sleeve and the spindle of the steering column. The tolerance ring allows the spindle to turn in the locking sleeve if a high torque is applied to the steering wheel when the lock is engaged. This prevents the locking bolt from being sheared by someone forcibly turning the steering wheel while the steering lock is engaged, while still effectively locking the steering. Engagement and disengagement of the ESCL is controlled by the passive anti-theft system.

In markets where an ESCL is not equipped, a dummy lock is installed. This provides a forward attachment point for the steering column lower cowl, and the ESCL is disabled in the car configuration files.

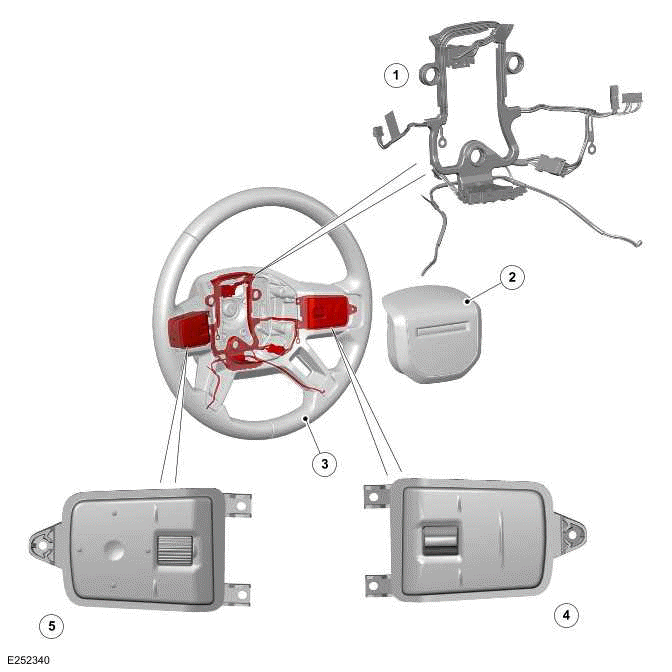

STEERING WHEEL

Steering Column

  1. Steering wheel wiring harness
  2. Driver airbag
  3. Steering wheel
  4. Steering wheel switchpack - Right
  5. Steering wheel switchpack - Left

The steering wheel is located on the input shaft of the steering column and secured with a screw. The end of the input shaft is marked to indicate the straight ahead position.

The driver airbag is located in the center of the steering wheel. 2 steering wheel switchpacks are located each side of the driver airbag. A wiring harness link connects the steering wheel components to the Clockspring.

HEATED STEERING WHEEL - IF EQUIPPED

Steering Column

  1. Heater mat
  2. Steering wheel heater
  3. Steering wheel wiring harness
  4. Steering wheel heater control module
  5. Steering wheel switchpack - Right
  6. Steering wheel heater switch
  7. Steering wheel heater temperature sensor

The heated steering wheel consists of a heater mat and a Negative Temperature Coefficient (NTC) type steering wheel heater temperature sensor. The steering wheel heater temperature sensor and the heater mat are installed around the rim of the steering wheel under the trim. The heater mat and the temperature sensor are connected to a steering wheel heater control module integrated in the wiring harness link under the driver airbag.

A heater symbol on the right steering wheel switchpack is illuminated amber when the steering wheel heater is switched on. When the steering wheel heater is switched off, the symbol is either not illuminated or, if the exterior lighting is switched on, illuminated green.

OPERATION

STEERING COLUMN ADJUSTMENT

The Body Control Module/Gateway Module (BCM/GWM) controls the steering column adjustment from the following inputs:

2 operation modes are available, dependent on the position of the steering column adjustment switch:

The memory function for the driver seat also stores the position of the steering column for each memory setting.

HEATED STEERING WHEEL - IF EQUIPPED

Power for the heated steering wheel is supplied to the steering wheel heater control module from the Passenger Junction Box (PJB) through the Clockspring. Operating the steering wheel heater switch provides a ground signal to the steering wheel heater control module. The steering wheel heater control module then supplies power to the heater mat and the steering wheel heater temperature sensor. The steering wheel heater control module monitors the temperature of the heater mat using the input from the steering wheel heater temperature sensor. The steering wheel heater control module regulates the power supply to the heater mat accordingly to maintain it at the optimum temperature.

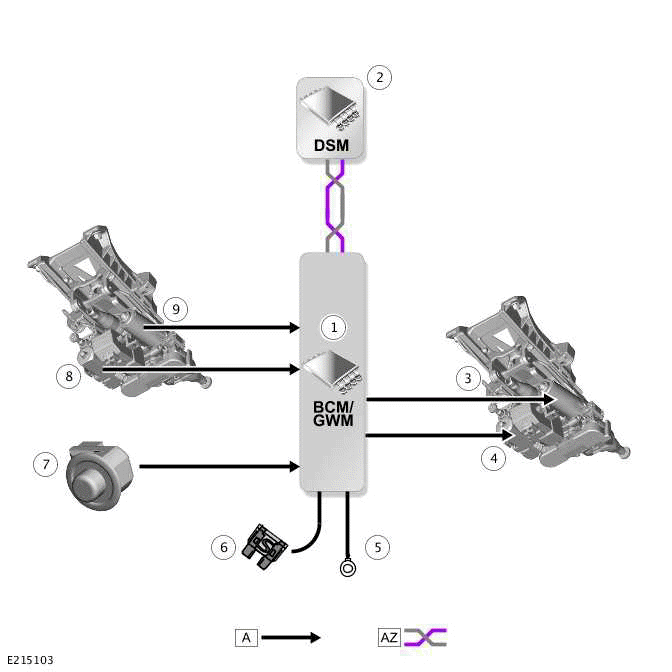

CONTROL DIAGRAM - 1 OF 2 - STEERING COLUMN ADJUSTMENT

Steering Column

A = HARDWIRED:
AZ = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) BODY SYSTEMS BUS.

  1. Body Control Module/Gateway Module (BCM/GWM)
  2. DSM
  3. Steering column adjustment motor - Tilt
  4. Steering column adjustment motor - Reach
  5. Ground
  6. Power supply
  7. Steering column adjustment switch
  8. Position sensor - Steering column adjustment motor - Reach
  9. Position sensor - Steering column adjustment motor - Tilt

CONTROL DIAGRAM - 2 OF 2 - STEERING WHEEL HEATER

Steering Column

A = HARDWIRED.

  1. Steering wheel heater control module
  2. Steering wheel heater temperature sensor
  3. Heater mat
  4. Ground
  5. Power supply
  6. Steering wheel heater switch
