Land Rover Defender: Steering Column - Removal and Installation

Land Rover Defender 2020-2024 Service Manual / Chassis / Steering System / Steering Column / Steering Column - Removal and Installation

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Steering Column - Removal and Installation

PART(S)

Steering Column - Removal and Installation

REMOVAL

WARNING: To prevent accidental deployment, you must power down the Restraints Control Module (RCM). Wait at least 1 minute after you disconnect the startup battery ground cable before you do any work on the Supplementary Restraint System (SRS). If you do not follow these instructions, it can cause injury or death.

NOTE:

1. Make sure the steering column is in service position.

2. Make sure the SRS is safe.

3. Disconnect the startup battery ground cable.

4. Remove the instrument panel lower trim.

5. Remove the clockspring.

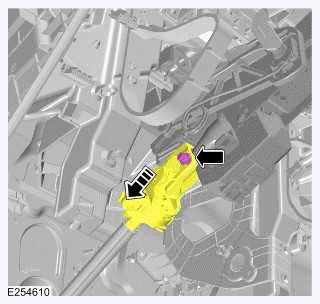

6.

Steering Column - Removal and Installation

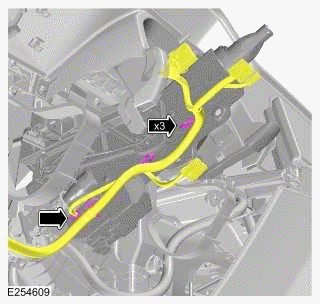

7.

CAUTIONS:

Steering Column - Removal and Installation

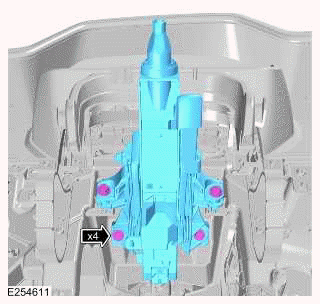

8.

CAUTION: Note the position of the bolts, prior to removal.

Steering Column - Removal and Installation

INSTALLATION

1.

CAUTIONS:

  • Make sure that the bolts are installed to the noted removal position.
  • Make sure that the steering column intermediate shaft Universal Joint (UJ) thread is clean and free of foreign material.
  • Make sure that the steering column intermediate shaft gets installed to the position noted in the removal steps.

2.

3. Install the clockspring.

4. Install the instrument panel lower trim.

5. Connect the startup battery ground cable.

6. If a new component has been installed, configure that component with the Jaguar Land Rover (JLR) approved diagnostic equipment.

General Equipment: Jaguar Land Rover approved diagnostic equipment

REMOVAL AND INSTALLATION

GENERAL EQUIPMENT

Steering Column - Removal and Installation

PART(S)

Steering Column - Removal and Installation

REMOVAL

NOTE:

1. Make sure the steering column is in service position.

2. Make sure the airbag Supplementary Restraint System (SRS) is safe.

3. Disconnect the startup battery ground cable.

4. Remove the clockspring.

5. Remove the instrument panel lower trim.

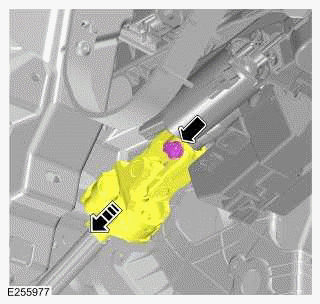

6.

Steering Column - Removal and Installation

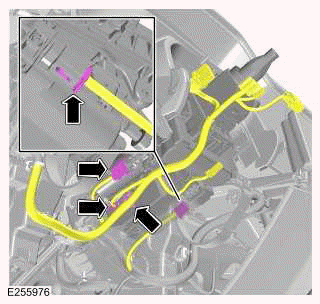

7.

CAUTIONS:

Steering Column - Removal and Installation

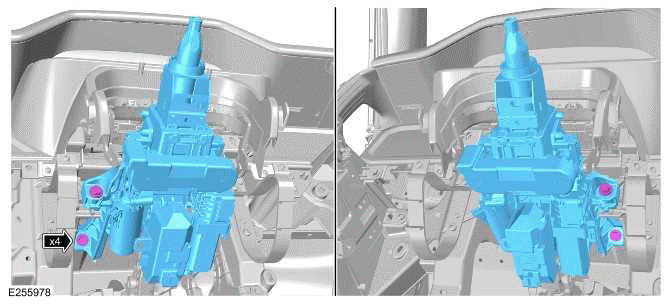

8.

NOTE: Note the position of the bolts, prior to removal.

Steering Column - Removal and Installation

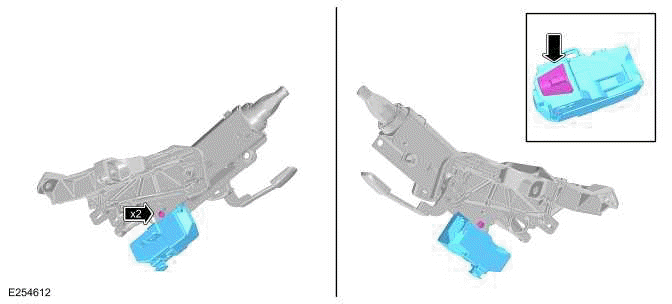

9.

NOTE: Only do the following step(s) if a new component is to be installed.

Steering Column - Removal and Installation

INSTALLATION

1.

NOTE: Only do the following step(s) if the component was previously removed.

2.

NOTES:

  • Make sure that the steering column intermediate shaft Universal Joint (UJ) thread is clean and free of foreign material.
  • Make sure that the steering column intermediate shaft gets installed to the position noted in the removal steps.
  • Make sure that the bolts are installed to the noted removal position.

3.

4. Install the instrument panel lower trim.

5. Install the clockspring.

6. Connect the startup battery ground cable.

7. If new ESCL installed, configure the component with the Jaguar Land Rover (JLR) approved diagnostic equipment.

General Equipment: Jaguar Land Rover approved diagnostic equipment
