Land Rover Defender: Steering Wheel Vibration/Shimmy While Driving

GENERAL PROCEDURES

GENERAL EQUIPMENT

CHECK

NOTES:

1.

NOTE: MENA and China markets only: If the retailer is equipped with tire heaters, follow the manufacturers instructions to warm the tires prior to balancing the wheels and tires, if a customer has a steering vibration/shimmy concern:

  1. Raise the vehicle using a suitable 2-Post ramp.
  2. Install the tire heater to the tire.
  3. Pull the tire heater together and secure with the velcro fastener.
  4. Pull the toggles to tighten around the tire to form a good fit.
  5. Repeat Steps above to the other tires.
  6. Connect all the electrical connectors to the control box and run the tire heating process.
  7. When the heating process is complete, remove the tire heaters and lower the vehicle.
  8. Adjust tire pressures to the recommended (cold) settings.
  9. Road test the vehicle for approximately 8 Km (5 miles), if possible road test the vehicle at speeds up to approximately 80 Km/h (50 mph).
  10. If the amount of steering vibration/shimmy is considered unacceptable following the initial road test completed in the diagnostic procedure, continue with this procedure.

2. If steering wheel vibration/shimmy is still present following the normal length PDI road test, continue to the diagnostic procedure below.

3.

CAUTION: Make sure that the Jaguar Land Rover-approved diagnostic tool is loaded with the latest level of software.

NOTE: The Jaguar Land Rover (JLR) approved diagnostic equipment will read the Vehicle Identification Number (VIN) for the vehicle and automatically take the vehicle out of 'Transportation mode' if required.

Connect the JLR approved battery support unit.

General Equipment: Jaguar Land Rover approved battery support unit

4. Connect the JLR approved diagnostic equipment to the vehicle and begin a new session.

General Equipment: Jaguar Land Rover approved diagnostic equipment

5.

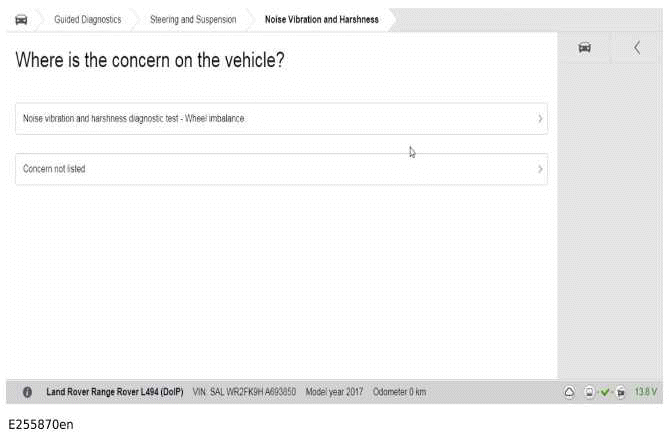

Steering Wheel Vibration/Shimmy While Driving

6.

Steering Wheel Vibration/Shimmy While Driving

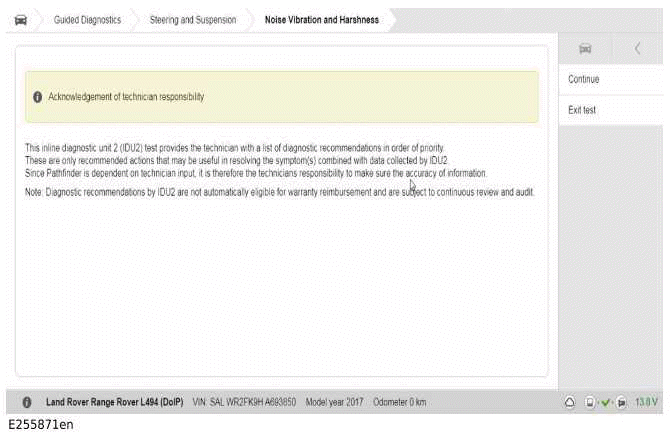

Follow the on-screen information and select 'Continue'.

7.

Steering Wheel Vibration/Shimmy While Driving

Connect the IDU2 NVH sensor to the JLR approved diagnostic equipment and complete the IDU2 NVH sensor self test/reset.

8.

Steering Wheel Vibration/Shimmy While Driving

Wait for the IDU2 NVH sensor self test/reset to complete.

9.

Steering Wheel Vibration/Shimmy While Driving

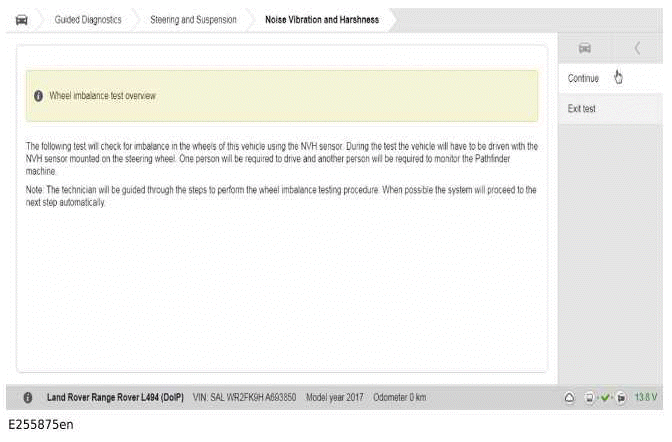

Follow the on-screen information and select 'Continue'.

10. Disconnect the JLR approved battery support unit.

11.

Steering Wheel Vibration/Shimmy While Driving

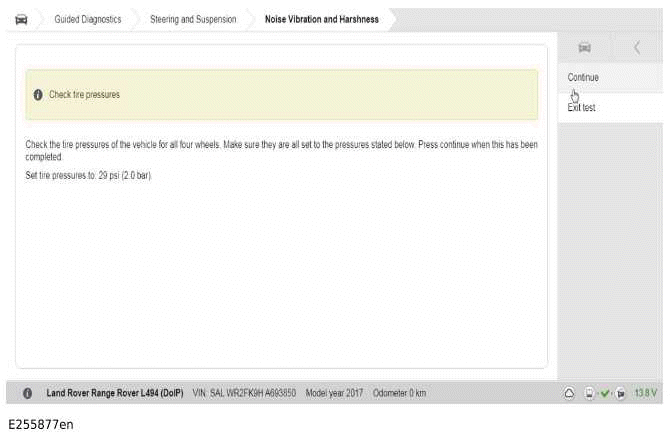

Follow the on-screen information and select 'Continue'.

12.

WARNING: Make sure that it is legal and safe to perform the wheel imbalance test at the speed required prior to carrying out the road test.

Steering Wheel Vibration/Shimmy While Driving

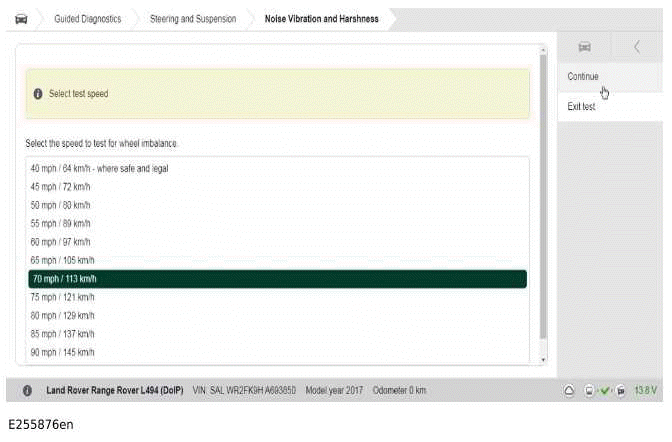

Select the speed that the customer has highlighted creates the vibration and select 'Continue'.

13.

Steering Wheel Vibration/Shimmy While Driving

Follow the on-screen information and select 'Continue'.

14.

NOTE: The IDU2 application will show the timer counting down.

Steering Wheel Vibration/Shimmy While Driving

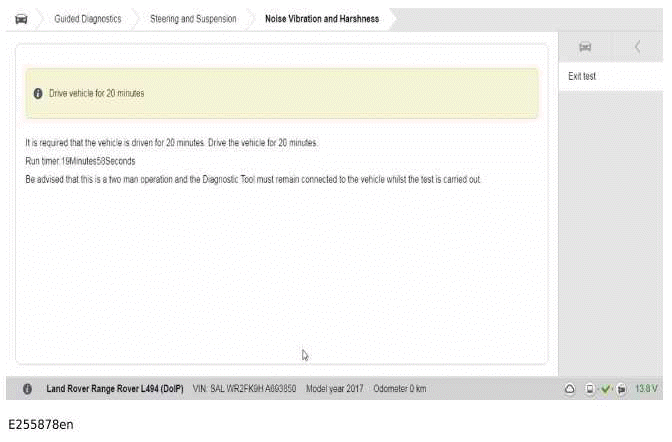

Follow the on-screen information and road test the vehicle.

15.

Steering Wheel Vibration/Shimmy While Driving

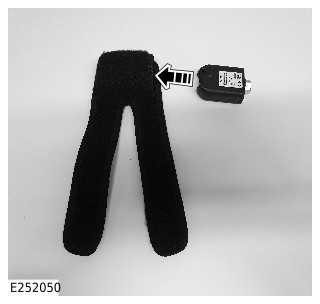

Install the IDU2 NVH sensor to the holder.

16.

Steering Wheel Vibration/Shimmy While Driving

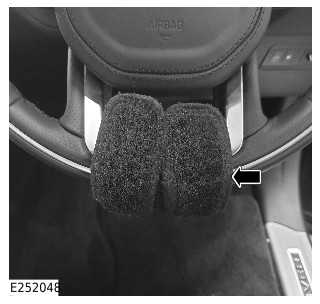

Install the install the IDU2 NVH sensor and holder assembly to the steering wheel in the orientation shown in the illustration.

17.

Steering Wheel Vibration/Shimmy While Driving

Wait for the IDU2 NVH sensor self test/reset to complete.

18.

Steering Wheel Vibration/Shimmy While Driving

Check the IDU2 NVH sensor number is seen on the display and select the correct number, then select 'Continue'.

19.

Steering Wheel Vibration/Shimmy While Driving

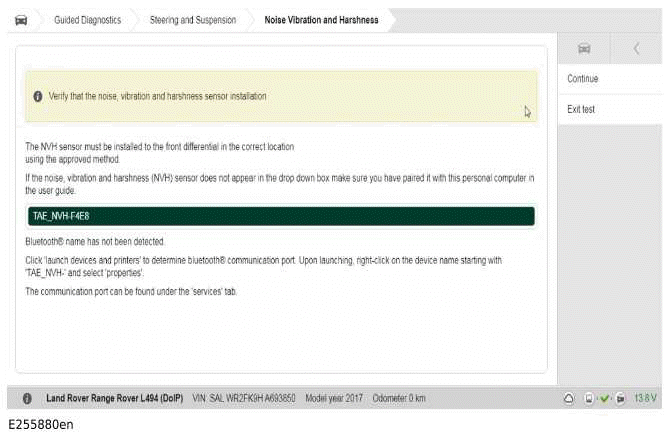

The IDU2 NVH sensor will connect to the Jaguar Land Rover approved diagnostic equipment through Bluetooth. Wait for the IDU2 NVH sensor to pair with the Jaguar Land Rover approved diagnostic equipment, then select 'Continue'.

20.

NOTES:

Steering Wheel Vibration/Shimmy While Driving

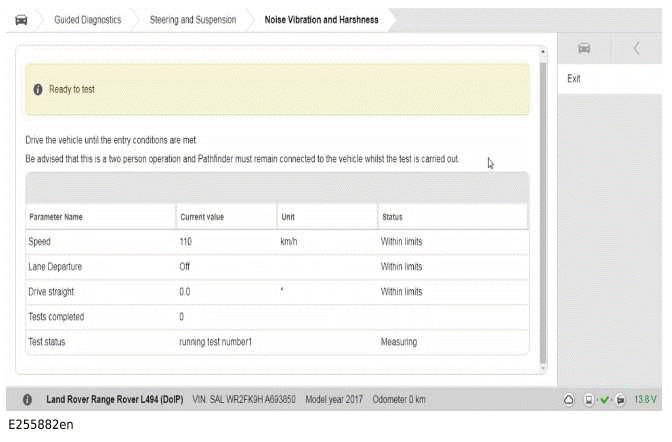

Drive the vehicle until all 3 tests have been completed and the screen has changed.

21.

NOTE: This information must be added to the retailer verbatim of the claim, otherwise the claim will be rejected.

Steering Wheel Vibration/Shimmy While Driving

Make a record of the 'Test reference' number produced at the end of the diagnostic test in the warranty claim submission.

22.
