Land Rover Defender: Suspension System - General Information

Land Rover Defender 2020-2024 Service Manual / Chassis / Suspension / Suspension System - General Information

SPECIFICATIONS

Suspension System - General Information

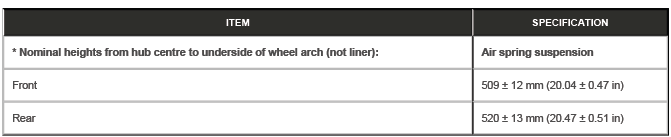

* Measurement taken with vehicle at unladen weight

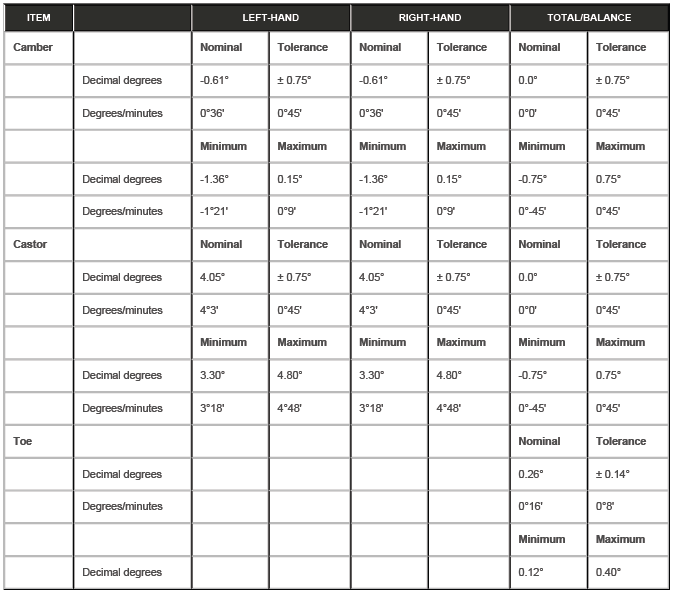

Wheel Alignment Specification - Front - Air Spring Suspension - Non Plug-in Hybrid Electric Vehicle (PHEV)

NOTE: All figures are with vehicle at 'Showroom' ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures.

Suspension System - General Information

Suspension System - General Information

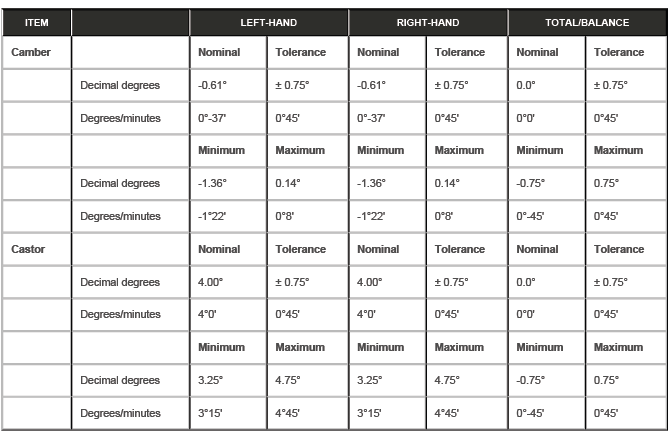

Wheel Alignment Specification - Front - Air Spring Suspension - PHEV

NOTE: All figures are with vehicle at 'Showroom' ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures

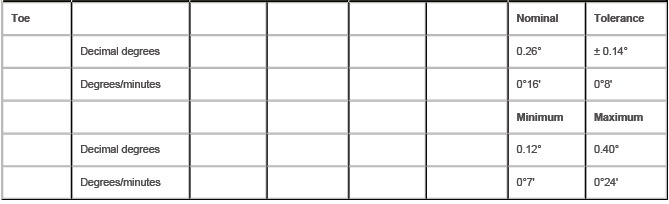

Suspension System - General Information

Suspension System - General Information

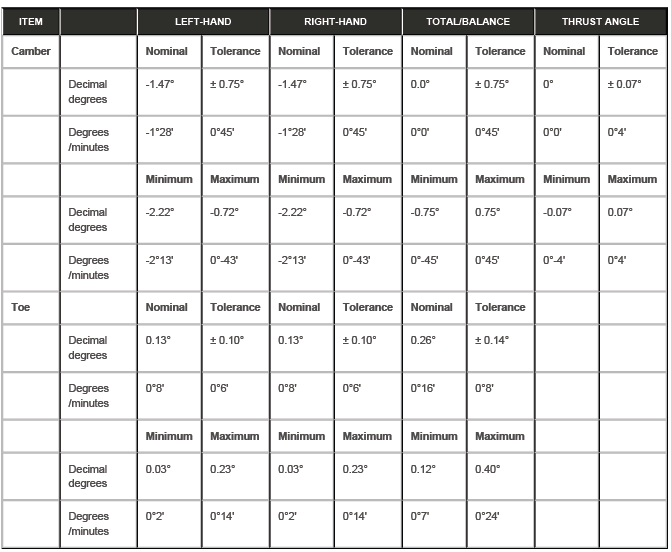

Wheel Alignment Specification - Rear - Air Spring Suspension - Non PHEV

NOTE: All figures are with vehicle at 'Showroom' ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures

Suspension System - General Information

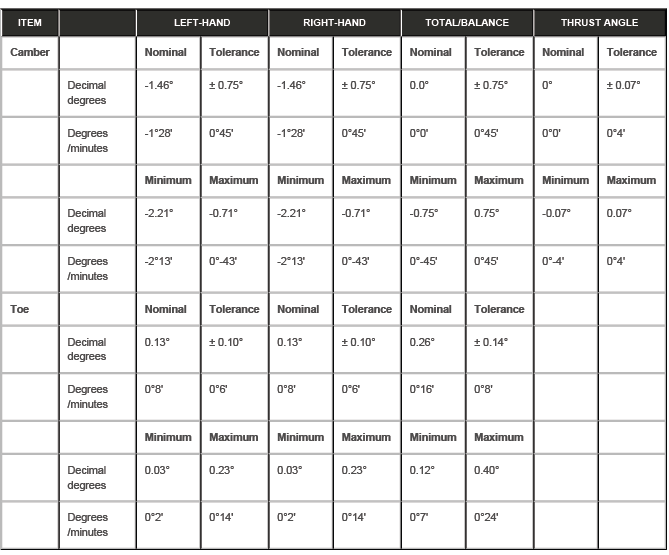

Wheel Alignment Specification - Rear - Air Spring Suspension - PHEV

NOTE: All figures are with vehicle at 'Showroom' ride height - full fluids, full tank of fuel, no occupants/luggage, tires inflated to normal pressures

Suspension System - General Information
