Land Rover Defender: Wiring Harness - Wiring Harness Repair, Including Supplementary Restraint System Firing Circuit Wiring

WIRING HARNESS REPAIR, INCLUDING SUPPLEMENTARY RESTRAINT SYSTEM FIRING CIRCUIT WIRING.

CAUTION: Disconnect the battery before commencing the repair of any wiring harness.

The repair is only appropriate where the damage is localised and is not over the full length of the wiring harness. If the damage is end to end then replacing the whole harness should be considered where appropriate. The damaged section of wiring harness must be removed by cutting either side of the damage at a point where the wiring harness retains its original condition. The number of twists in a twisted pair of wires is important to the functionality of the circuit and as such must be maintained. Note the number of twist over the repair length prior to commencing the repair. The same number of twists must reintroduced after completing the repair.

If repairing multiple wires within a harness, stagger the connecting splices and twist the wire between the connecting splice locations. This will minimize the untwisted length and the effect of increasing the diameter of the harness. On no account must the untwisted length exceed 50 mm (2.0 inch) each side of the connecting splice. When each connecting splice repair is completed, cover the splice with a black glue lined heat shrink sleeve. Use an approved hot air applicator to shrink the sleeve until the glue is visible at both ends. Make sure that connecting splice repairs are not located in any dynamic movement area of a harness.

When all wiring harness repairs are complete, the wiring harness must be wrapped in insulating tape and returned as close as possible to new vehicle condition. Make sure the wiring harness follows the original routing and all clips and connectors are secured.

Repairs to SRS firing circuit wiring.

WARNING: Do not use any vehicle with damage to the supplementary restraint system components or wiring harness.

CAUTION: All supplementary restraint system wiring harness repairs must be completed using the approved repair kit only.

The wiring used for a SRS firing circuit repair must be 0.5 mm² (0.00078 inch²) cross sectional area. Both the male and female sides of the damaged connectors must be replaced. Installation of SRS pre-terminated connectors, cut the wiring harness at a suitable point as close as possible to the damaged connector (destroy the removed connector).

Identify the correct new pre-terminated connector from the SRS firing circuit wiring harness repair kit and cut to a suitable length. Install to the SRS firing circuit wiring harness using the connecting splices supplied.

Follow the repair procedure detailed above, taking into account the staggering of connecting splices and the number of twists. The whole repair should then be covered with yellow heat shrink sleeve supplied to act as SRS firing circuit wiring repair location/identification. The repair authentication label must be completed by the authorized technician conducting the repair and approved by their supervisor. The label must then be secured around the harness adjacent to or at a suitable point as close as possible to the location of the repair.

Care and neatness are essential requirements in making a perfect repair.

CAUTION: Under no circumstances should repair be attempted to the following:

• Link lead assembles, which are unique to safety critical circuits such as ABS and thermocouple circuits.
• An example of this is the ABS wheel speed sensors with moulded connectors.
• Throttle Control circuits.
• Speed Control circuits.
• Screened cables, leads and wiring harness(s).

If any harness(s) with defective electrical connector terminals or cables from the above circuits give cause for concern, new components must be installed.

CAUTIONS:

• Do not attempt to repair or reform a damaged electrical connector terminal. A damaged electrical connector terminal must be replaced using the correct pre-terminated lead.
• A ground point connector with multiple wires to the connector must not be repaired as a complete connector. If a damaged wire is identified, the wire can be repaired individually using the correct pre-terminated lead.
• Do not attempt the repair of damaged battery, hybrid and power cables.

  These types of cable generally have a cross sectional area larger than 6 mm² (0.009 inch²) and must only be replaced. If the original cable is contained within the harness bundle the original cable must be left in the harness. Attach the replacement cable to the harness along the original harness route.

  The replacement cable must follow the original cable route to avoid the risk of introducing electrical interference issues. The original cable connections must be cut from the cable at both ends and discarded. The exposed cable ends must be free from sharp edges and strands of wire. The exposed cable must be over taped to prevent injury before being taped back to the main harness.

If any harness(s) with defective electrical connector terminals or cables from the above circuits give cause for concern, new components must be installed.

ELECTRICAL WIRING HARNESS REPAIR COMPONENTS

The electrical wiring harness repair components comprises of:

• Pre-terminated leads of different sizes and types
• Splice connectors in 3 sizes
• A selection of colored cable identification sleeves
• Glue lined heat shrink sleeves in 2 sizes.

NOTE: A suitable heat source, for shrinking the glue lined heat shrink sleeves will be required.

The pre-insulated diamond grip range of electrical connector terminals and in-line splice connectors are the only acceptable product for the repairs of wiring harnesses. The splice connectors not only grip the wire but also the insulation, making a very secure joint.

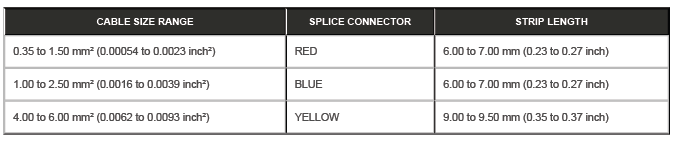

Pre-Terminated Lead and Splice Connectors

The pre-terminated lead(s) are supplied with the insulation in 1 of 3 colors, red, blue or yellow. The colors indicate the cable size range and not any particular circuit; refer to the Electrical Wiring Harness Repair Relationship Table in the Repair Methods section.

Splice connectors are also supplied with red, blue or yellow coverings, which must be matched to the pre-terminated lead insulation color.

For ease and speed, some of the pre-terminated lead(s) may already have the insulation partly stripped at the splice end. If the repair requires insulation to be stripped from the cable, refer to the Electrical Wiring Harness Repair Relationship Table in the Repair Methods section. The correct length of insulation to be stripped will be detailed in the table.

Wire Chart and Service Repair Information

This information is part of the relevant Electrical Reference Library (ERL) or Interactive Electrical Wiring Diagrams (iEWD) available through TOPIx.

NOTE: Access to information about the pre-terminated leads for vehicles supported by the iEWD is achieved by hovering the screen pointer over the relevant connector number and left-clicking.

When the relevant connector housing has been identified, refer to the associated Wire Chart and Service Repair Information. This is to make sure the installation of pre-terminated leads or wiring harnesses are completed in the approved manner.

• Identify the connector cavity in which the terminal needs replacing
• Make a note of the cross sectional area of the associated wire
• Make a note of the part number of the appropriate pre-terminated lead
• Make a note of the correct terminal extraction tool (where applicable)

Before commencing a wiring harness repair, always make sure the correct pre-terminated leads and associated repair parts have been ordered using the Jaguar Land Rover (JLR) parts ordering system.

Some of the pre-terminated leads have seals installed to the insulation for sealed connector applications. Where, as part of a repair, sealed terminals are removed, it is essential that those terminals are replaced by sealed pre-terminated leads.

Wire chart and service repair information also includes:

• The destination of the cable
• The applicable tools and associated other parts necessary to make sure the pre-terminated lead is correctly installed in the approved manner

CAUTIONS:

• Where the repair procedure indicates that a glue lined heat shrink sleeve should be applied, apply sufficient heat to the glue lined heat shrink sleeve. This will melt the glue and provide a water tight seal.

  Do not over heat the glue lined heat shrink sleeve so that the wiring harness insulation becomes damaged.

• Do not use any heat shrink sleeve other than the approved glue lined heat shrink sleeve specified in the repair procedure.

Glue Lined Heat Shrink Sleeving

There are 2 sizes of glue lined heat shrink sleeving available. Each heat shrink sleeve contains a sealant glue. These must be used when connecting wiring harness(s) or electrical connector terminal(s) at all times. The smaller diameter glue lined heat shrink sleeve is to be used with the red and blue splice connectors. The larger diameter glue lined heat shrink sleeve is to be used with the yellow splice connectors.

Wiring Harness Cable Identification Sleeves

A selection of colored sleeves are available for maintaining the wiring harness cable identification on the pre-terminated lead.

The sleeve identification packs are available to suit the 3 cable size ranges of Red, Blue and Yellow. Each sleeve identification pack contains 50 of each of the following colored sleeves:

• Black
• Brown
• Red
• Orange
• Yellow
• Green
• Blue
• Violet
• Gray
• White

Place the correct colored sleeve(s) over the pre-terminated lead insulation as near to the electrical connector as possible. The main wiring harness cable color should be nearest to the electrical connector.

For example: if the original wiring harness cable color is green with a black trace:

1. Put the green wiring harness cable identification sleeve on the pre-terminated lead first
2. Put the black wiring harness cable identification sleeve on the pre-terminated lead second
3. Slide both sleeves along the wiring harness cable to the electrical connector terminal.

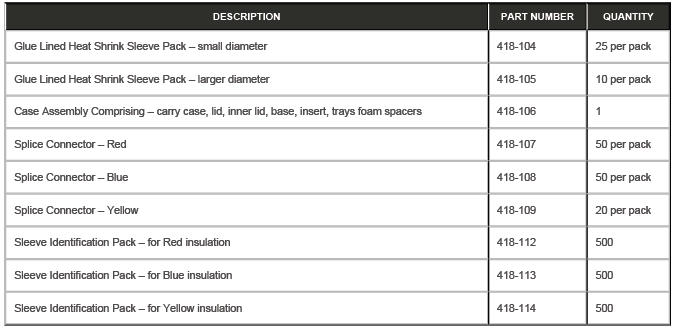

Wiring Harness Repair Parts

NOTE: Repair components can be ordered through the JLR parts ordering system.

WIRING HARNESS REPAIR TOOLS

NOTE: Replacement repair equipment can be ordered from the equipment workshop website; refer to the Replacement Repair Equipment in the Introduction section.

The wiring harness repair tools comprises of:

• A selection of extraction tools
• A wire cutter and insulation stripper
• Crimpers

Extraction Tools

The extraction tools are used to remove a terminal from an electrical connector. Refer to the Wire Chart and Service Repair Information for the correct extraction tool for each terminal (where applicable). Each extraction tool has been specially designed to extract a particular type of electrical connector terminal. The use of any other tool is not recommended and is liable to cause damage to the electrical connector.

CAUTION: Inspect the electrical connector housing for evidence of damage. The damage may affect the security of a terminal inside the connector housing. The damage may affect the operation of the anti-backout device. The damage may affect the secure installation of the connector housing to the intended component/connector housing. Replace a damaged electrical connector housing.

Insulation (Wire) Stripper

By pressing the outer edges of the wiring harness cable length stop together the adjuster can be slid up or down the jaw. This decreases or increases the length by which the cable insulation will be stripped from the pre-terminated lead or wiring harness cable.

NOTE: Some wiring harness insulation may be harder and require more effort to make a clean strip but exercise care not to damage the wire.

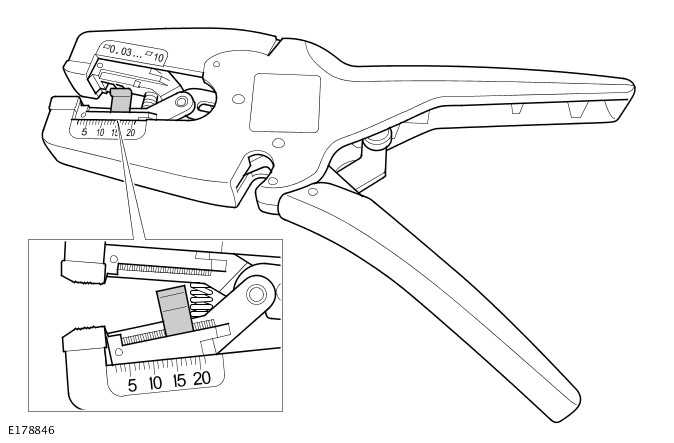

Insulation (Wire) Stripper

The adjuster has a position indicator to align with a graduated scale and this sets the correct length in millimeters, of insulation to be stripped. The amount of insulation to be stripped is shown in the Electrical Wiring Harness Repair Relationship Table.

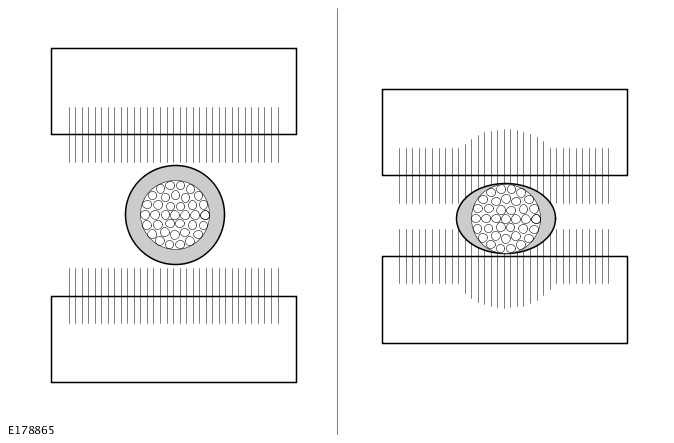

The following illustration shows the insulation stripper tool and a wiring harness correctly gripped in the jaws. A wire cutter is provided on the outer side of the fixed jaw.

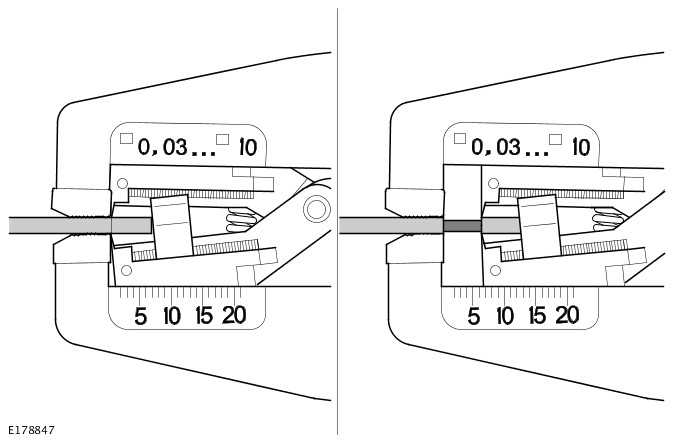

Cable Correctly Gripped in Stripper Blades

Crimpers

The crimpers have a moving jaw and a stationary jaw, with 3 different sized crimping enclosures. Each of the enclosures are identified by a red, blue or yellow colored dot which corresponds to the 3 colors of the pre-terminated leads and splice connector.

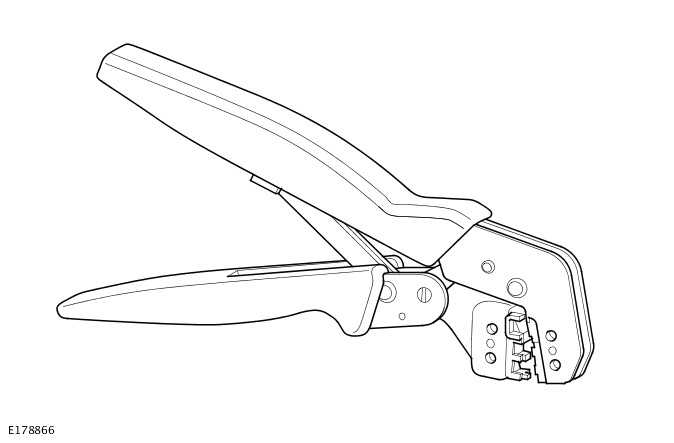

Crimpers

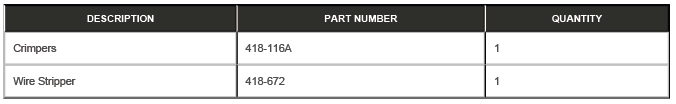

NOTE: Replacement repair equipment can be ordered from the equipment workshop website; refer to the Replacement Repair Equipment in the Introduction section.

APPROVED ELECTRICAL WIRING HARNESS REPAIR METHODS

CAUTION: Several different types and sizes of terminal may be found in a single electrical connector housing.

It is necessary to identify:

• The conductor (wire) size of the affected wiring harness
• The electrical connector range from which the damaged wiring harness is to be removed
• The electrical terminal type

Use of the approved diagnostic tool will greatly assist in the quick identification of electrical connectors and faulty pin terminal(s).

Reference can also be made to the ERL and iEWD available through TOPIx, to identify wiring harness(s) and electrical connector(s).

Use the Electrical Wiring Harness Repair Relationship Table to identify the correct splice connector to suit the wiring harness conductor (wire) size. This will relate to a suitable pre-terminated lead by the color of the insulation. The table also identifies the correct length of insulation to be stripped from the wiring harness lead.

Electrical Wiring Harness Repair Relationship Table

Electrical Connector Terminal Extraction

It must be noted that some electrical connector(s) have anti-backout devices which prevent the terminals from being removed from the electrical connector. Some examples of these are shown in following illustrations. The anti-backout device must be released before attempting to remove the terminal from the electrical connector. Some anti-backout devices require a special tip to release the device. Please refer to the ERL for the correct tool(s) to use (where applicable).

Various types of electrical connector have seals installed internally or externally to prevent moisture ingress. These normally do not have to be removed but make sure that they are installed when the electrical connectors are connected.

CAUTION: Inspect the electrical connector housing for evidence of damage. The damage may affect the security of a terminal inside the connector housing. The damage may affect the operation of the anti-backout device. The damage may affect the secure installation of the connector housing to the intended component/connector housing. Replace a damaged electrical connector housing.

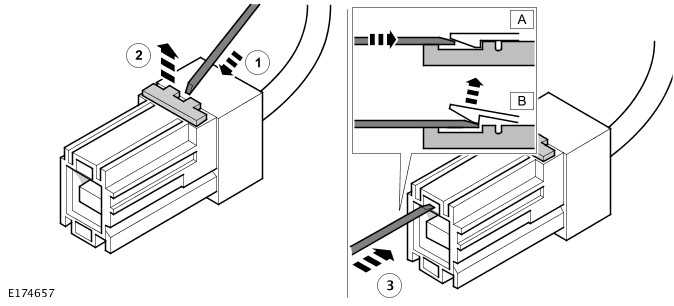

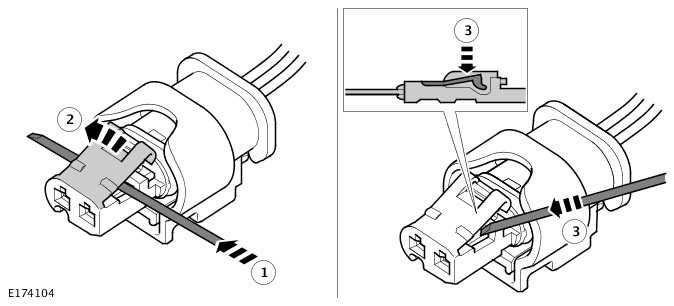

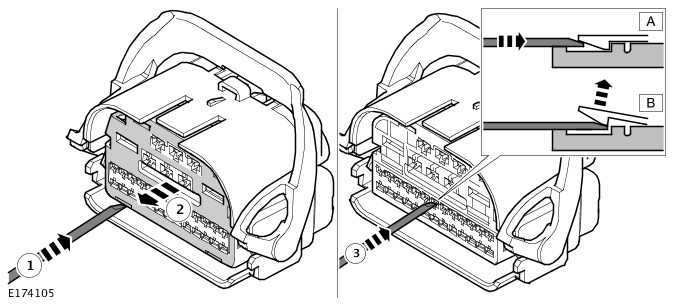

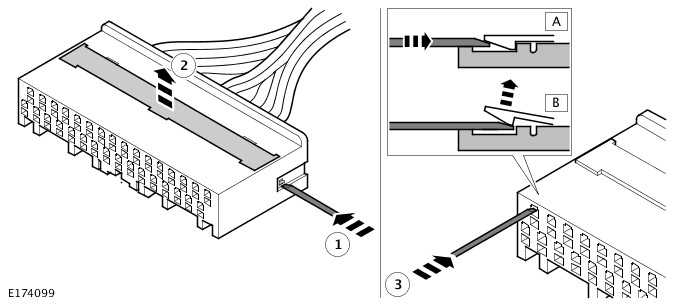

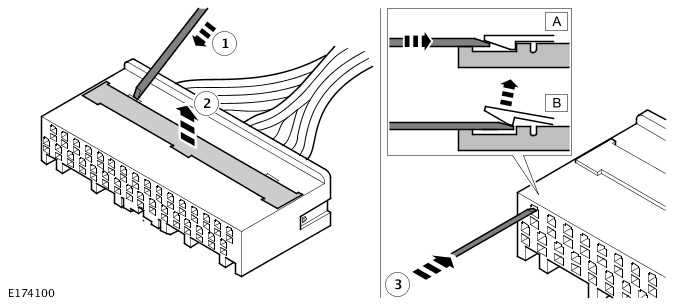

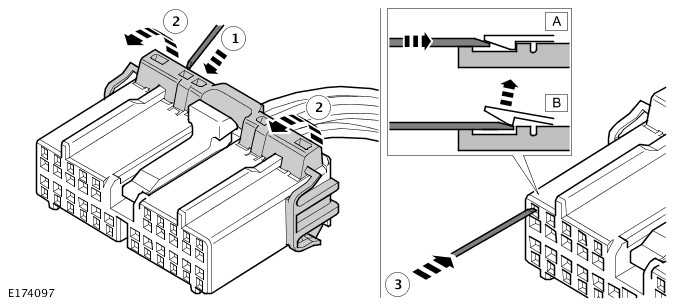

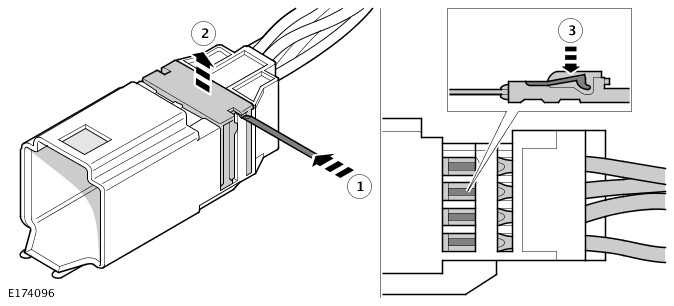

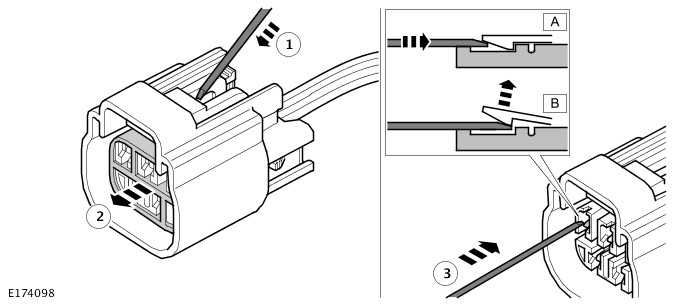

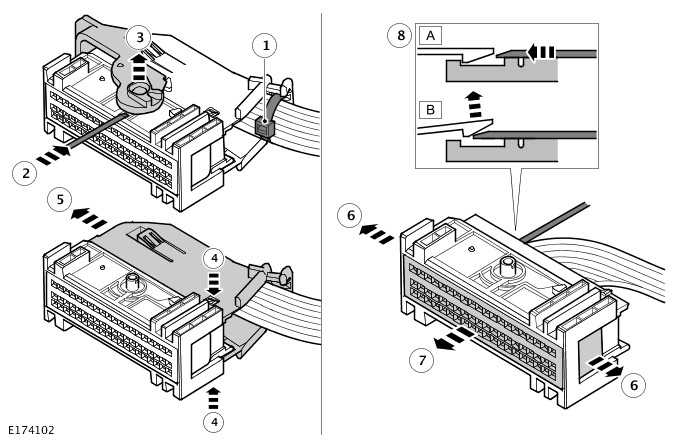

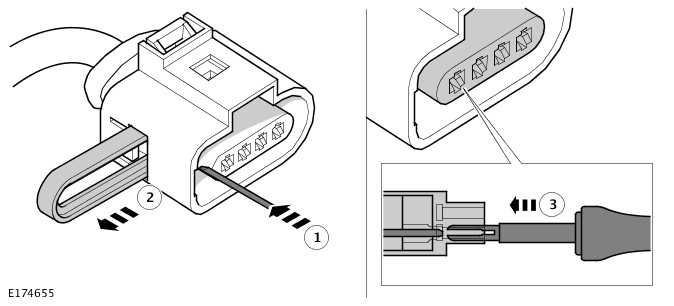

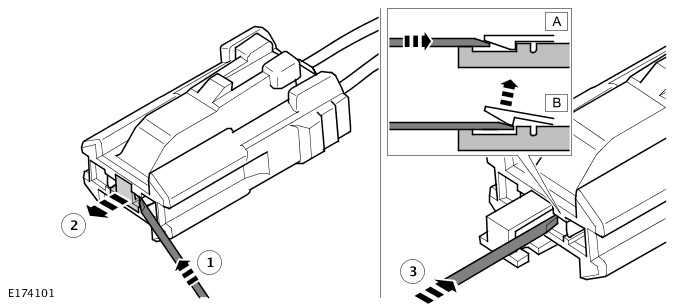

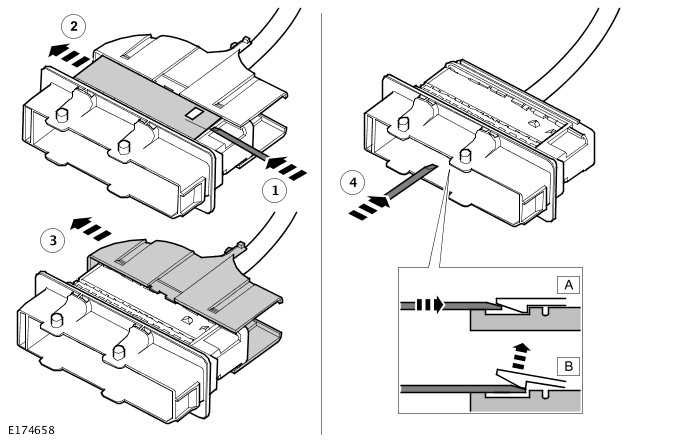

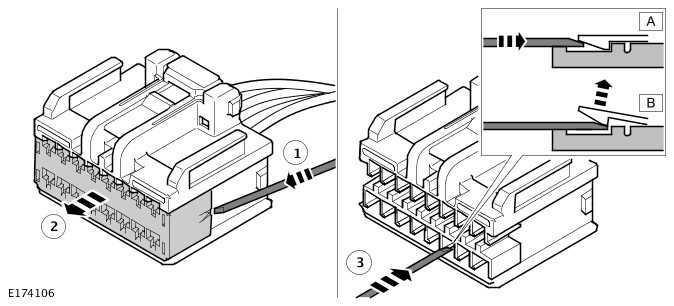

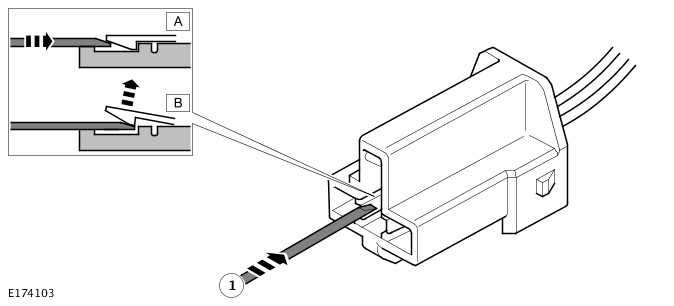

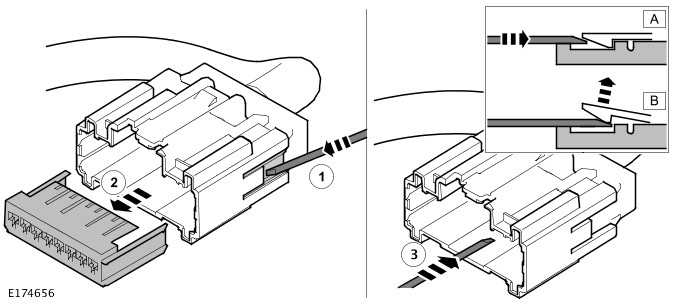

The illustrations show examples of some of the common styles of extraction tools used on different types of electrical connector(s). Care should be exercised to avoid further damage when removing the terminals from the electrical connector.

NOTE: Examples of the extraction tools and anti-backout devices.

A

B

C

D - 1

D - 2

E

F

G

H

I

J

K

L

M

N

TYPES OF ELECTRICAL WIRING HARNESS SPLICE REPAIRS

Splice connectors are available in 3 sizes; refer to Pre-Terminated Lead and Splice Connectors in the Electrical Wiring Harness Repair Components section.

A splice connector can be used in a number of ways to achieve an effective and robust wiring harness repair.

NOTE: For all repairs the wire being repaired must not be under any strain when the circuit is connected to the intended component or connector housing etc. If the wire is too short when the damage has been removed, it must be returned to the appropriate length. This requires inserting an extension wire into the center of the splice repair; refer to Double Splice Extension Repair.

The following information will show and explain the variations of splice joints achievable; these are:

• A 1 Wire Splice Repair
• A 2 Wire Splice Repair
• Pulled Out Wire Splice Repair
• Damaged Splice Repair
• Double Splice Extension Repair
• Splice Repair to Wire Smaller than 0.35 mm² (0.00054 inch²)

A 1 Wire Splice Repair

If a wire has damage isolated to the wire only without any further damage to the terminal or connecter, the damaged portion of wire can be removed. Remove the damaged part of the wire by cutting each side of the damaged area and reconnected using the appropriate splice connector.

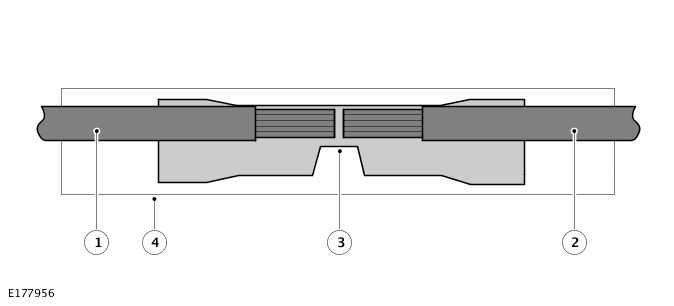

A 1 Wire Splice Repair Example

1. Original Wire
2. Original Wire
3. Splice Connector
4. Glue Lined Heat Shrink Sleeve

A 2 Wire Splice Repair

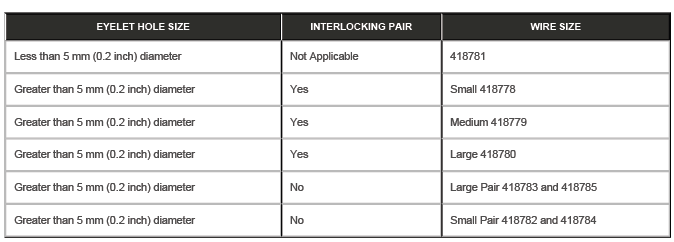

To repair wiring harnesses with damaged eyelets, use a splice connector with a suitable pre-terminated lead with the appropriate eyelet and wire size. See table below for more information.

NOTES:

• If the damaged eyelet is from an interlocking pair, it is recommended to replace both eyelets.
• If any harness(s) with large multi wire ground eyelets give cause for concern, new components must be installed.

If the wiring harness has a damaged eyelet with 2 wires to the eyelet, it is recommended to use a suitable pre-terminated lead. The lead should have a cross sectional area equal to or greater than that of the 2 wires combined to complete the repair.

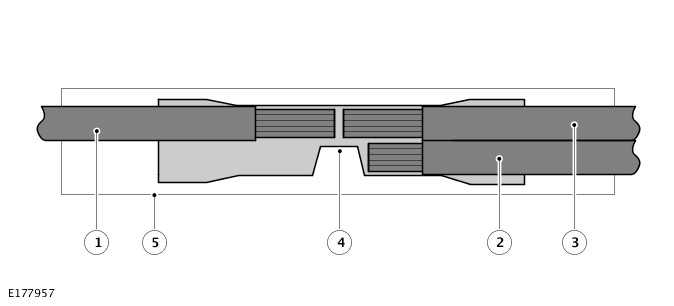

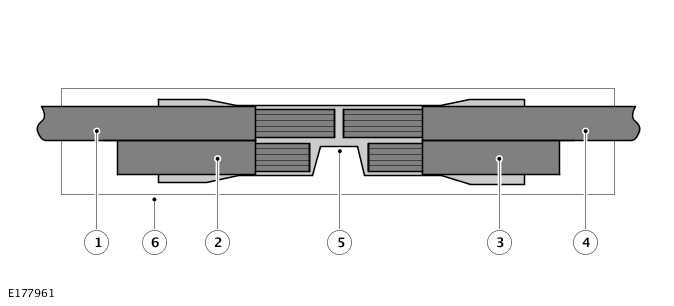

A 2 Wire Splice Repair Example

1. Pre-terminated Lead
2. Original Wire
3. Original Wire
4. Splice Connector
5. Glue Lined Heat Shrink Sleeve

Pulled Out Wire Splice Repair

If a wire has become disconnected from its splice, it can be repaired by splicing the disconnected wire to 1 of the wires still part of the original splice.

Cut the undamaged wire of the original splice and with a suitable splice connector, clamp the splice side of the wire.

Install a suitable section of glue lined heat shrink sleeve to the splice the wire had disconnected from. Insert the disconnected wire and the undamaged wire into the splice connector and clamp the splice connector.

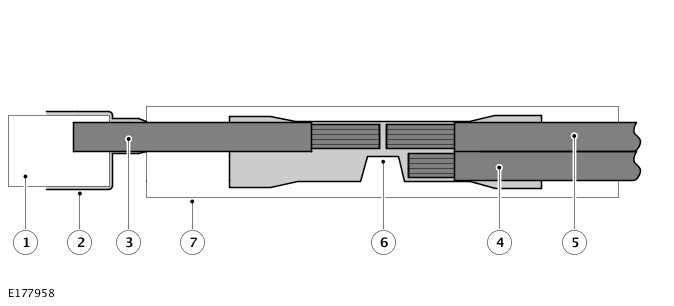

Pulled Out Wire Splice Repair Example

1. Original Splice
2. Glue Lined Heat Shrink Sleeve
3. Original Undamaged Wire
4. Pulled Out Wire
5. Original Undamaged Wire
6. Splice Connector
7. Glue Lined Heat Shrink Sleeve

Damaged Splice Repair

If a wiring harness has splice which has been damaged, the splice must be removed and replaced.

Remove the damaged splice by cutting it from the wiring harness, making sure to leave as much undamaged wire as possible on the wiring harness. Using 1 or more suitable splice connectors make a new splice.

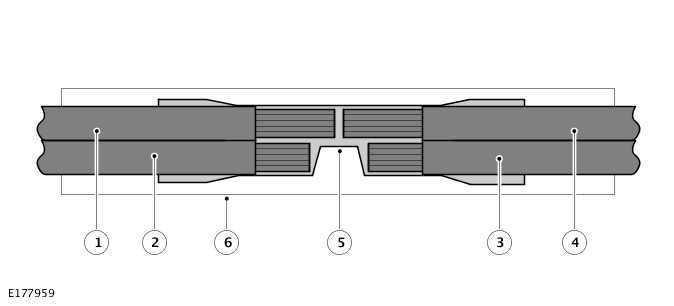

Damaged Splice Repair Example

1. Original Wire
2. Original Wire
3. Original Wire
4. Original Wire
5. Splice Connector
6. Glue Lined Heat Shrink Sleeve

Double Splice Extension Repair

If the wire(s) being repaired are too short when the damage area of wire has been removed the following is recommended. Use 2 splice connectors and an appropriate length of wire with colored cable identification sleeves to return the wire its original length.

The extension wire must have the same or greater cross sectional area as the wire(s) combinations entering the splice connectors. Example: 2 wires x 0.5 mm² (0.00077 inch²) cross sectional area + 2 wires x 0.75 mm² (0.0012 inch²) cross sectional area would require a wire of 2.5 mm² (0.0039 inch²) cross sectional area or greater.

Double Splice Extension Repair Example

1. Original Wire(s)
2. Original Wire(s)
3. Extension Wire
4. Splice Connector
5. Glue Lined Heat Shrink Sleeve
6. Splice Connector
7. Glue Lined Heat Shrink Sleeve

Splice Repair to Wire Smaller than 0.35 mm² (0.00054 inch²)

To repair a damaged wire with a cross sectional area smaller than 0.35 mm² (0.00054 inch²) do the following. Use the smallest approved splice connector (red) and insert an additional wire with the wire being repaired into each side of the slice connector.

For each splice repair to a wire smaller than 0.35 mm² (0.00054 inch²), an additional piece of wire (0.35 mm² (0.00054 inch²) or 0.5 mm² (0.00078 inch²) ) must be used. The additional piece of wire must be inserted into the splice connector with the wire being repaired. to make the joint secure when crimped. When the wires have been crimped into the splice connector, all additional wire(s) must be cut close to the splice connector. This is to make sure the additional wire is fully covered when the glue lined heat shrink sleeve is in position over the splice connector.

Splice Repair to Wire Smaller than 0.35 mm² (0.00054 inch²) Example

1. Original Wire (less than 0.35 mm² (0.00054 inch²) )
2. Additional wire (0.35 mm² (0.00054 inch²) or 0.5 mm² (0.00078 inch²) )
3. Pre-terminated Lead or replacement wire (less than 0.35 mm² (0.00054 inch²) )
4. Additional wire (0.35 mm² (0.00054 inch²) or 0.5 mm² (0.00078 inch²) )
5. Splice Connector
6. Glue Lined Heat Shrink Sleeve

Repairs to Twisted Wires

The number of twists or turns of twisted pair wires is important to the functionality of the vehicle systems and as such must be maintained during a repair.

It is important to make sure that the number of turns over the repair length is counted at the start of the repair. Make sure that the same number of turns are reintroduced before fitting the terminals into the connector. If the original number of turns cannot be reintroduced on a twisted wire, the following dimensions must not be exceeded:

• A Controller Area Network (CAN) harness, the maximum length of untwisted wire is 150 mm (5.9 inch).
• A FlexRay harness, the maximum length of untwisted wire is 60 mm (2.3 inch).
• A BroadR-reach harness, the maximum length of untwisted wire is 50 mm (2.0 inch).

WIRING HARNESS REPAIR PROCEDURE

Before starting any repair of a damaged wire, the damaged wire must be inspected along its length where possible to evaluate the full extent of the damage. If the damage is in a localized area the wire repair is recommended, if the damage is extensive, a replacement harness should be considered. A wire being repaired must be cut at a point where there is no damage to the wire or insulation.

NOTES:

• If the wire repair requires the use of a pre-terminated lead, the wire must not be cut more than 300 mm (11.8 inch) from a connector housing.
• A repaired wire must not be under any strain when connected to its intended component/connector housing.

Where there is a need to repair more than 1 wire in a harness branch, the splices must be staggered. This will minimize the effect of increasing the diameter of the harness branch. The recommended spacing is 50 mm (2.0 inch) between centers for yellow splices and 40 mm (1.57 inch²) between centers for red or blue splices.

CAUTIONS:

• Do not use:
  • crimpers
  • insulation (wire) strippers
  • splice connectors
  • heat shrink sleeves
  • pre-terminated leads or wiring harness(s)
• That are not authorized and supplied through the JLR parts ordering system
• Where the repair procedure indicates that a glue lined heat shrink sleeve should be applied, apply sufficient heat to the glue lined heat shrink sleeve. This will melt the glue in order to provide a water tight seal. Do not over heat the glue lined heat shrink sleeve so that the wiring harness insulation becomes damaged.

There is no specific limit on the number of splices that can be used in a harness branch. The responsible technician must judge the number of splices that can be installed along the available length of harness and within the space in which the harness is located.

Consideration must be given to any need to bend the harness and the risks of the repaired harness rubbing, squeaking or rattling against adjacent parts, body panels or trim.

Wiring Harness Repair Process

1. Remove the faulty terminal from the electrical connector using the correct extraction tool. Make sure that any anti-backout device is released before trying to remove the terminal.
2. CAUTION: A number of electrical connector terminals are gold plated or gold flashed. When defective, they must be installed with a gold pre-terminated wiring harness(s). It is not always easy to identify the female as gold but the male pins are visually easier. Therefore always inspect both male and female terminals to identify those which are gold. Under no circumstances are gold and tin terminals to be mixed as this will lead to early failure of the electrical contact.

NOTE: Never use a harness lead with a smaller diameter than the original harness lead.

Select the correct size and type of pre-terminated wiring lead and splice connector; refer to Wire Chart and Service Repair Information.

3. Using the wire cutter on the insulation (wire) stripper, cut the pre-terminated wiring harness and the harness cable to the required length.
4. NOTE: See illustration: Stripping Insulation

From the Electrical Wiring Harness Repair Relationship Table, find the correct length of insulation to be stripped from the pre-terminated lead. Set the adjustable cable length stop to the correct length. Place the pre-terminated lead in the insulation (wire) stripper and remove the insulation.

5. Put the cable identification sleeve(s) on to the wiring harness with the main cable color nearest to the terminal.
6. During this next step take care only to close the crimpers far enough to hold the splice connector firmly in position. Place the selected splice connector in the crimpers, matching the aperture and the splice connector colors. Make sure that the window indentation in the splice connector is resting over the guide bar on the lower jaw. Partially close the grip until the splice connector is securely held in the aperture. This will give support to the splice connector while the wiring harness(s) are inserted into it.

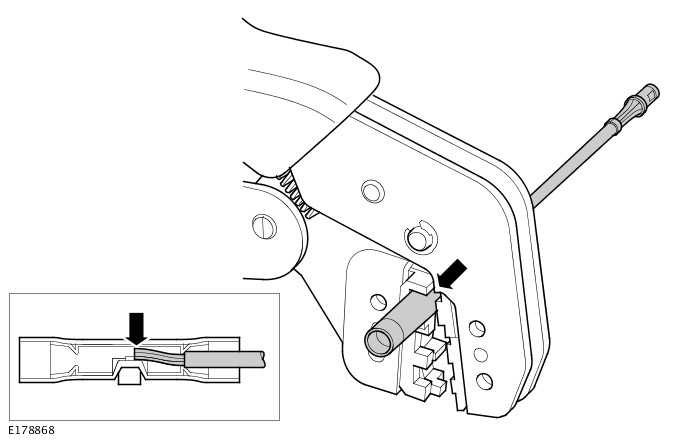

7. NOTE: See illustration: Splice Correctly Located

Insert the pre-terminated lead into the splice connector and make sure that the wire is against the wire stop.

Close the grip firmly, crimping the pre-terminated lead to the splice connector. When the handles have been completely closed the splice connector will be freed from the tool as the handles are released. If the handles have not been completely closed then the jaws will hold the splice connector and it cannot be removed from the tool.

8. Make sure that the wiring harness cable has been squarely cut and the correct length of insulation removed. If more than 1 splice is needed the splice connectors must be not be crimped to the wiring harness at the same distance from the connector. The splices must be staggered to prevent a bulk of splices in the same area of the wiring harness.
9. It is preferable to cover the splice joint with a glue lined heat shrink sleeve. This is desirable not essential, except where the electrical connector is a sealed electrical connector. Use the smaller diameter glue lined heat shrink sleeve for red and blue pre-terminated lead(s). Use the large diameter glue lined heat shrink sleeve for the yellow pre-terminated lead(s). It is advisable to place the heat shrink sleeve over the completed joint but in some instances the glue lined heat shrink sleeve will not pass over the terminal. Inspect, and if required, place the correct size glue lined heat shrink sleeve onto the harness cable or pre-terminated lead before crimping the splice to the wiring harness.
10. Place the harness cable into the splice with the splice window over the guide bar. Make sure that the harness cable is against the stop in the splice, crimp the splice connector to the wiring harness.
11. Gently pull the harness cables each side of the splice connector to make sure that a secure joint has been made.
12. WARNING: Do not use a naked flame in areas where fuel or oil have been spilt. Clean the area of residual oil and fuel and wait until the fuel spill has fully evaporated.

CAUTIONS:

• When using a heat source make sure that it is localized and causes no damage to surrounding materials.
• Where the repair procedure indicates that a glue lined heat shrink sleeve should be applied, apply sufficient heat to the glue lined heat shrink sleeve. This will melt the glue in order to provide a water tight seal. Do not over heat the glue lined heat shrink sleeve so that the wiring harness insulation becomes damaged.

Using a suitable heat source, shrink the sleeve over the splice.

13. If further pre-terminated lead(s) are to be installed to the same electrical connector, make sure that the lead is cut at a different length to the previous joint. This makes sure that the splices will, where possible, be staggered on the wiring harness and prevent a bulk of splices in 1 area.
14. When all of the splices have been made, install the terminal(s) to the electrical connector, taking care that the terminals are correctly oriented.
15. Install the wiring harness cover and secure with adhesive electrical tape. Do not cover the wiring harness right to the electrical connector. The terminals must have a little movement and not be firmly bound to the electrical connector or wiring harness. Make sure that the cable identification sleeve(s) are showing at the wiring harness electrical connector.

Stripping Insulation

Splice Correctly Located

CLIP/FIXING REPAIR/REPLACEMENT

The following applies to 12V applications

When doing any Electrical Distribution System (EDS) repairs or investigating vehicle faults/failures the following guidelines must be followed:

• Broken clips and fixings must be replaced
• Damaged/worn clips and fixings that could fail in service must be replaced
• If a harnesses when removed to facilitate vehicle/powertrain strip down may compromise the retention performance of some clips/fixing types. Any clip/fixing that is used in an area subject to dynamic movement or high vibration whose retention features were damaged by removal during strip down must be replaced.

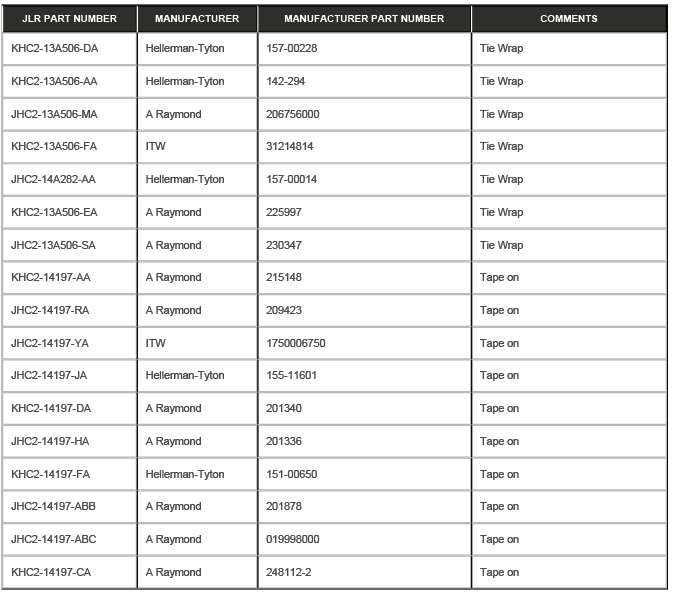

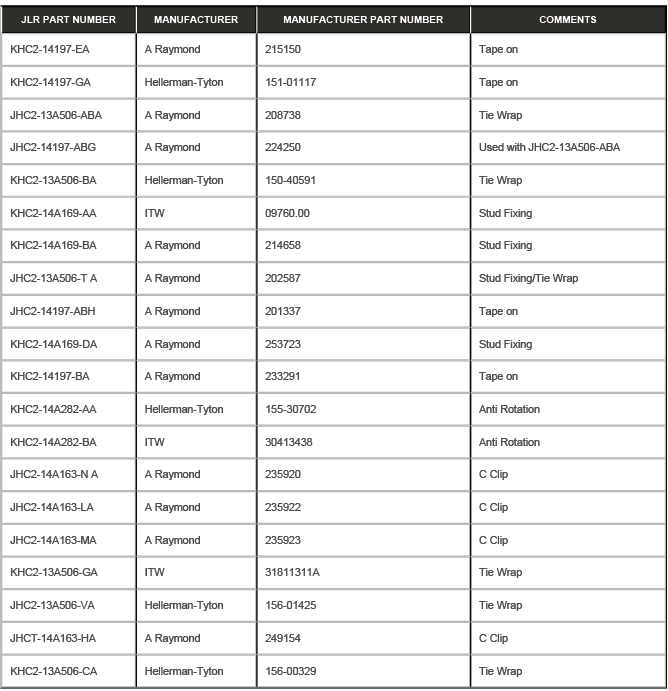

The majority of clips/fixings are listed in the following table.

Push old or damaged fixing out of the way (turning it around the harness if necessary) and put on new fixing. Inspect fixing positioning to make sure that the harness is not close to anything hot, sharp or dynamic.

The following applies to 48V and High Voltage (HV) applications.

All HV fixings are classified as 'critical' for the vehicle assembly process. Threaded fixings must be reassembled using the specified torque (published in the Work Shop Manual/Topix). For all HV fixings, wherever possible the damaged part is to be displaced/pushed out of the way. The damaged part must be left in place and the new part installed alongside in the exact location of the old/previous fixing. Where the fixing must be removed to facilitate replacement then extreme care must be used to prevent risk of damage to the cables and coverings

GROMMETS - REPAIR/REPLACEMENT AND ADDITIONAL CIRCUITS

Solid (over moulded) grommets are non-repairable and must be replaced by the installation of a new harness.

Grommets with plastic inserts for panel retention - the inserts can be removed and replaced where necessary.

EPDM (Rubber) grommets: if the grommet is damaged then a 1 off attempt to repair with a suitable automotive grade silicon sealant is allowed. When the repair is completed, test for leaks (noise/fumes/water). If this fails to seal then the harness must be replaced.

If any vehicle accessories are added that require additional wires/circuits to pass through a sealed grommet then these must be routed through the service nipple. The service nipple must then be sealed using a suitable automotive grade silicon sealant and secured as shown below.

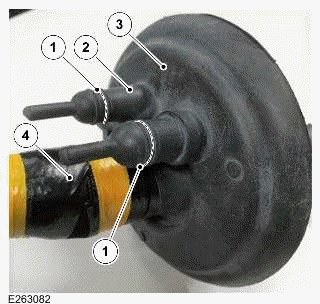

Rubber Grommet With Service Nipple

1. Location to cut
2. Secure with cable tie
3. Grommet
4. Existing harness

READ NEXT:
